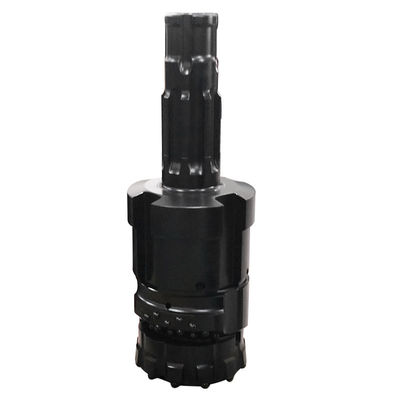

Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer

Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer
Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer

Large Image :  Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: ODEX240 drilling system
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 3-4 weeks
Supply Ability: 20000 sets per month

Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer

Description
Product Name: ODEX240 System Color: As Request
Usage: Drilling Water Wells, Geothermal Wells Specification: ODEX190,ODEX240,ODEX280
Casing Tube: OD 114-356mm Material: High Quality Carbide + High Quality Carbon Steel
High Light:

odex piling system

,

geotechnical drilling tools

,

ODEX240 Eccentric Casing System

Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer



Product Specification:



ODEX system Eccentric Casing system is suitable for drilling water wells, geothermal wells, short mircopiles,medium mini-type grouting hole of building,damand harbour project.
- Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
- Easy soil and groundwater sampling during drilling;
- Possible to measure yield estimate at selected depth in the formation;
- Advantageous in unconsolidated formations with a high risk of caving


Casing drilling involves drilling and casing a well simultaneously through unstable ground conditions, In casing drilling process, down the hole tools can be retrieved, through the casing on wire-line, meaning tool recovery or replacement of tools
can take minutes versus hours under conventional methods. This process employs wire line-retrievable tools and a drill-lock assembly, permitting bit and BHA changes, coring, electrical logging and even directional or horizontal drilling. Once the casing point is reached, the casing is
cemented in place without tripping pipe.

Casing drilling has been employed in many countries as an effective method of reducing the overall drilling costs by reducing drilling time and drill string problems
encountered during conventional drilling process.



ODEX240 system

1 Casing Tube Maximum OD:273mm
Minimum ID:260.4mm
2 Drill Pipe Connection Thread:API 3 1/2"Reg
OD: 114mm
Wrench Flats: 95mm
3 Guide Sleeve Effective length: 343mm
4 DTH hammer HD85,Cop84,SD6,DHD380,QL80,MISSION80
5 Casing Shoe L3=110mm L4=65mm D3=259mm D4=241mm
6 Guide Device L1=70mm L2=190mm D1=240mm D2=256mm
7 Reamer D5=238mm L5=100mm
Reaming Diameter:308mm
Reamer has 14x16mm buttons
8 Pilot Bit D6=240mm L6=89.5mm
Gauge Button: 12x16mm
Face Button: 18x16mm



Model Outer Dia. of Casing Tube
(mm)
Inner Dia. of Casing Tube(mm) Wall thickness of casing
(mm)
Reamed Dia.
(mm)
Min. Inner Dia.of Casing Shoe
(mm)
Hammer Type Drill Pipes
(mm)
Weight
(kg)
ODEX for DTH Drilling
ODEX90 115 102 6.5 125 92 COP32/COP34/DHD3.5/BR3/MACH303 76 12.5
ODEX115 140 128 6 157 117 COP44/DHD340/MACH44/MISSION40
/SD4/XL4/QL40
76/89 22
ODEX140 168 157 5.5 182 142 COP54/DHD350/MACH50/MISSION50/SD5/QL50 89 38
ODEX165 194 183 5.5 206 166 COP62/COP64/DHD360/MISSION60
/SD6/XL6/QL60/TD150
114 61.5
ODEX190 222 205 8.5 234 191 114 83
ODEX240 273 260 6.5 305 241 COP84/DHD380/SD8/QL80/MIISION80 114 136.5
ODEX280 323 297.6 12.7 338 281 SD10/NUMA100/TH10


Overburden Drilling ODEX240 Eccentric Casing System For 8" Hammer 0



About Us:

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
