Product Details:
|
| Product Name: | Numa120 Dth Drill Bits | Color: | Black Or Optional |
|---|---|---|---|
| Air Pressure: | 10-25 Bar | Applications: | Mining, Rock Drilling,blasting |
| Face Shape: | Flat, Convex, Concave | Diameter: | 300mm-381mm |
| Connection Thread: | API 4 1/2" Reg API 6 5/8" | Size: | 10 1/2" ,11", 11 1/2" 12",13",14",15" |
| High Light: | rock drilling tools,water well drilling tools |
||
12" 13" 14" 15"DTH Hammer Bits Numa120 DTH Bit Rock Drill Bits For Drilling
Product specifications: DHD1120 DTH bits
| Drill Bit | Bit Dia.(mm) | NO.Air Holes |
Gauge Buttons |
Front Buttons |
Weight(Kg) | Part No. |
| DHD1120 | 305 | 4 | 12*Φ18 | 36*Φ16 | 152 | DHD1120-305 |
| 311 | 4 | 12*Φ18 | 36*Φ16 | 157 | DHD1120-311 | |
| 330 | 4 | 16*Φ18 | 42*Φ16 | 165 | DHD1120-330 | |
| 356 | 4 | 16*Φ19 | 42*Φ16 | 178 | DHD1120-356 | |
| 381 | 4 | 16*Φ19 | 42*Φ18 | 198 | DHD1120-381 | |
| SD12 | 305 | 4 | 12*Φ18 | 36*Φ16 | 156 | SD12-305 |
| 311 | 4 | 12*Φ18 | 36*Φ16 | 168 | SD12-311 | |
| 330 | 4 | 16*Φ18 | 42*Φ16 | 180 | SD12-330 | |
| 356 | 4 | 16*Φ19 | 48*Φ16 | 191 | SD12-356 | |
| 381 | 4 | 16*Φ19 | 48*Φ18 | 200 | SD12-381 | |
| NUMA120 | 305 | 4 | 12*Φ18 | 36*Φ16 | 152 | N120-305 |
| 311 | 4 | 12*Φ18 | 36*Φ16 | 158 | N120-311 | |
| 330 | 4 | 16*Φ18 | 42*Φ16 | 165 | N120-330 | |
| 356 | 4 | 16*Φ19 | 48*Φ16 | 178 | N120-356 | |
| 381 | 4 | 16*Φ19 | 48*Φ18 | 195 | N120-381 | |
| NUMA125 | 305 | 4 | 12*Φ18 | 36*Φ16 | 170 | N120-305 |
| 311 | 4 | 12*Φ18 | 36*Φ16 | 173 | N120-311 | |
| 330 | 4 | 16*Φ18 | 42*Φ16 | 182 | N120-330 | |
| 356 | 4 | 16*Φ19 | 48*Φ16 | 191 | N120-356 | |
| 381 | 4 | 16*Φ19 | 48*Φ18 | 200 | N120-381 |
DTH hammer
With professional manufacturing experience in DTH hammer production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards.It is durable for being produced with advanced craftwork and good material.
It also has the following advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi-head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
DTH Bit
DTH bit is our main product. After mang years search, we have rich experience in development and manufacturing high quality products, which adopted high-quality raw materials, advanced technology and passed through strictly inspection.
1.high and low air pressure down-the-hole drill bits
2.Low air pressure holeDia.:65-220mm
3.High air pressure hole Dia.:85-305mm
4.Face type:drop center/concave/convex/double gauge/flat
5.Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.

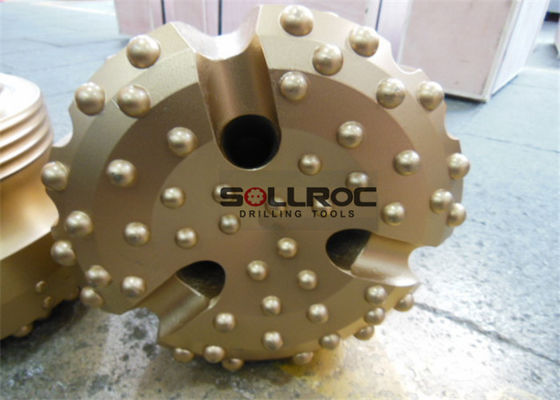

Product photos
