Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling

Certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
Customer Reviews
I received my hammers and bits, they looks amazing,.they are performing well after we use them, thanks very much.

—— John Lewis

I would recommend this company product 110% as in the past I have had a 100% good result from them.

—— Vesa Vaatanen

I'm Online Chat Now

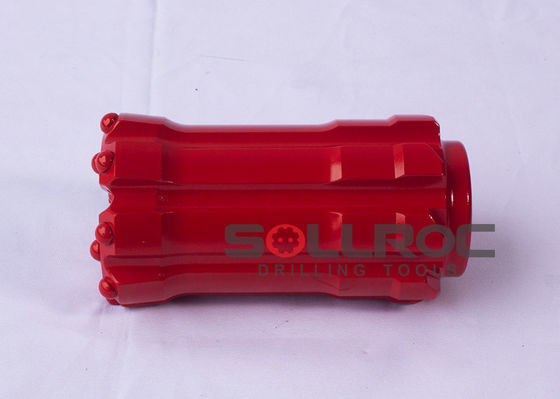

Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling

Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling
Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling

Large Image :  Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: T60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100-500
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 20-25 working days
Payment Terms: T/T,
Supply Ability: 1

Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling

Description
Material: Alloy Steel Thread: T60
Diameter: 95-152mm Package: Plywood Case
Color: Black, Red Production Time: 18-25 Working Days
High Light:

oil well drilling tools

,

water well drilling tools



Tophammer drilling



Together these elements make it possible to drill holes in the hard rock. The excess material (cuttings) is flushed up from the bottom of the hole by means of pressurized air or water. Top hammer drills are primarily used in mining, construction and quarrying of rock material.





Top hammer drilling principle



1. When the piston hits the shank, kinetic energy in the piston creates a compressive wave in the string of drilling tools, that will cause the bit to penetrate the rock

2. Piston velocity at impact ≈ 10m/s but the compressive wave in the drill steel travels at a velocity of 5180 m/s (velocity of sound in steel)

3. The bit is forced forward and penetrates the rock around 1.0 mm

4. Part of the energy not used to penetrate the rock goes back as a tensile wave and part of it as a compressive wave





Product advantages



Sollroc tophammer drilling tools has advantages as follows:

1. Material is from Baosteel with strict process of steel smelting and rolling: Refining - Vacuum - Continuous casting - drilling hole method - surface peeling to control the content of non metallic inclusion and harmful element.

2. Material are developed by cooperated with National & Local Joint Engineering Laboratory for High-performance Metal Structure Materials and Advanced Manufacturing Technology to improve the fatigue resistance of drilling steel.
3. Thread strengthen: enhance the thread parts to improve the wear-resistance and longevity of the rod.

4. Strictly control precision thread process to avoid thread too hot and broken effected by the high vibration and shaking of thread part when it works.
5. Heat treatment: Fully Carburization - Air cool quenching - tempering. It make the rod keep high toughness and improve surface harness and whole strength as well.





Package and shipping



Package: Carton+plywood case, or as request.

Shipping: By sea, by air, by express, as your request.





Detailed Pictures



Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling 0







Catalog of T60 tophammer drilling tools



Red Thread T60 Button Bit , Top Hammer Drill Bits For Production Drilling 1







Company information



Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.



Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
