Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling Or Mining | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | Bit |
| High Light: | oil well drilling tools,water well drilling tools |
||

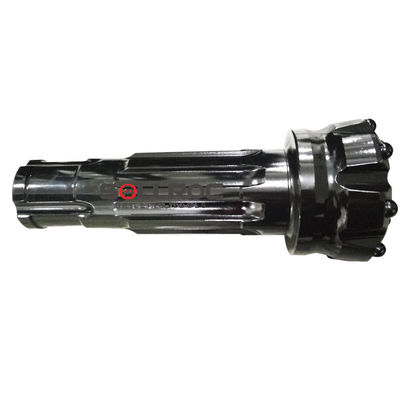

Shank SD6 3 1/2'' AR Carburied Steel 6'' 165mm DTH Bit For Water Well Drilling
Product Introduce
Sollroc DTH drill bits uses polycrystalline diamond compact replaces the traditional cemented carbide cutters, polycrystalline diamond compact has high strength, high hardness, strong wear resistance, impact resistance and good self-sharpening. The polycrystalline diamond DTH drill hole drill well solved in the complex geological conditions of carbide wearing resisting, carbide 5 to 20 times higher than that of its wear resistance.
Feature
Produced by CNC machines
Simple and reasonable design, Low problem rate
Can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs
We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.
Specification
|
Bit Dia.(mm) |
Qty.× Button Dia.(mm) |
Qty.Flushing holes |
Weight (kg) |
||
|
mm |
inch |
Outer |
Front |
||
|
152 |
6'' |
8×18 |
4×16+4×14 |
2×26 |
23 |
|
156 |
6 1/8'' |
8×18 |
4×16+4×14 |
2×26 |
23.5 |
|
160 |
6 5/16'' |
8×18 |
4×16+4×14 |
2×26 |
23.5 |
|
165 |
6 1/2'' |
8×18 |
8×16 |
2×26 |
24 |
|
171 |
6 3/4'' |
8×18 |
10×16 |
2×26 |
25 |
|
185 |
7 1/4'' |
9×18 |
10×16 |
3×22 |
27 |
|
190 |
7 1/2'' |
10×18 |
13×16 |
2×26 |
28 |
|
203 |
8'' |
10×18 |
14×16 |
2×26 |
31 |
About us
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
