Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DHD340A DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD340A | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 5'' |
| Bit Diameter: | 127mm | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | Dia 127mm DTH Drill Bits,High Air Pressure DTH Drill Bits,DHD340A down the hole hammer bits |
||

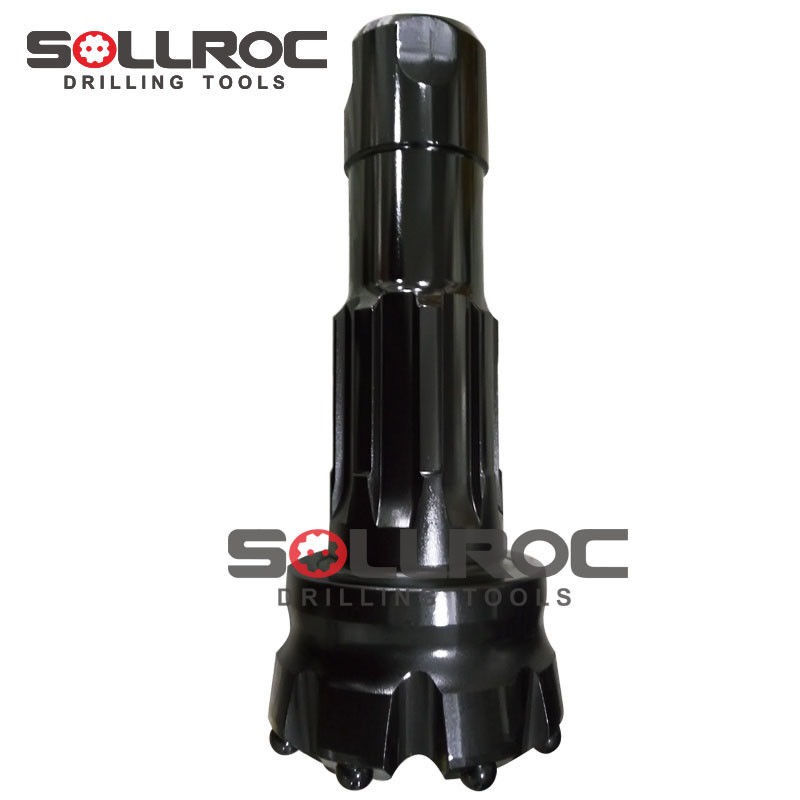

5''-127mm Black High Air Pressure DTH Bit DHD340A Use For Mining
Product description
DHD340A 127mm 5'' DTH Drill Bit overview
| Bit Diameter | 127mm 5'' |
| No.* Button Dia. mm | Gauge Buttons 8*14mm |
| Front Buttons 7*13mm | |
| Weight (kg) | 8.8 |
DHD340A series DTH bit overview
| Diameter | Button Configure Dia*qty. | Bit design |
Weight (kg) |
||
| Metric | Inch | Guage button | Front button | ||
| 115mm | 4 1/2'' | 14mm*7 | 14mm*2+14mm*4 | Convex face | 8.1 |
| 115mm | 4 1/2'' | 16mm*7 | 14mm*2+14mm*4 | Convex face | 8.1 |
| 115mm | 4 1/2'' | 14mm*8 | 14mm*2+14mm*4 | Convex face | 8.1 |
| 125mm | 4 15/16'' | 14mm*8 | 13mm*3+14mm*4 | Convex face | 8.7 |
| 127mm | 5'' | 14mm*8 | 13mm*7 | Flat face | 8.8 |
| 130mm | 5 1/8'' | 14mm*8 | 14mm*7 | Flat face | 9 |
Product Advantages
1. 1.High quality carbide ensures high quality and performance.
2.Carbide grade options for long life in challenging applications.
3.Face designs to maximize penetration rate and tool life.
4.Optimized flushing designs to aid in cuttings removal and reduce wear
Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock conditions
2. They however have a slower penetration rate in comparison to a concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions
Structure picture
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
Company informaiton
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
