Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| High Light: | OD4 1/2" Dual Wall RC Drill Pipe,OD3 1/2" Dual Wall RC Drill Pipe,OD4" reverse circulation drill pipe |
||
3 1/2"-4 1/2" Wear Resistance Dual Wall RC Drill Pipes For Reverse Circulation RC Drilling
Product Introduce:
Reliability and long life are built into SOLLROC Reverse Circulation Pipe by using the best materials available. Tool joints are heat treated for optimal strength and wear resistance. Inner tube ends are also heat treated and even chrome plated on the O-ring sealing surface.To make the RC drill pipe good quality.
SOLLROC Dual Wall RC Drill Pipe:
| Pipe OD | Outer Tube | Inner Tube | Thread | Spanner Flat | Weight | |||||
| outer diameter | inner diameter | wall thickness | outer diameter | inner diameter | wall thickness | 3M | 6M | |||
| 3 1/2'' | 88.9 mm | 81.8 mm | 5.3 mm | 38.1 mm | 32.6 mm | 5.5 mm | 3 1/2'' Remet | 90 mm | 77 kgs | 125 kgs |
| 4'' | 101.6 mm | 94.6 mm | 7.1 mm | 50.8 mm | 45.3 mm | 5.5 mm | 4'' Remet | 90 mm | 77 kgs | 155 kgs |
| 4'' | 101.6 mm | 94.6 mm | 7.1 mm | 50.8 mm | 45.3 mm | 5.5 mm | 4'' Metzke | 90 mm | 77 kgs | 155 kgs |
| 4'' | 101.6 mm | 94.6 mm | 7.1 mm | 50.8 mm | 45.3 mm | 5.5 mm | 4'' Matrix | 90 mm | 77 kgs | 155 kgs |
| 4 1/2'' | 114.3 mm | 107.2 mm | 7.1 mm | 63.5 mm | 58 mm | 5.5 mm | 4 1/2''Remet | 90 mm | 97 kgs | 172 kgs |
| 4 1/2'' | 114.3 mm | 107.2 mm | 7.1 mm | 63.5 mm | 58 mm | 5.5 mm | 4 1/2''Metzke | 90 mm | 97 kgs | 172 kgs |
| 4 1/2'' | 114.3 mm | 107.2 mm | 7.1 mm | 63.5 mm | 58 mm | 5.5 mm | 4 1/2''Matrix | 90 mm | 97 kgs | 172 kgs |
Adavantages:
1.High tensile hardened tool joints
2.Seamless High tensile drill pipe and inner tube material
3.Options for additional heat treating of tool joints
4.Options for Urethane Seals to replace traditional "O" Ring setup

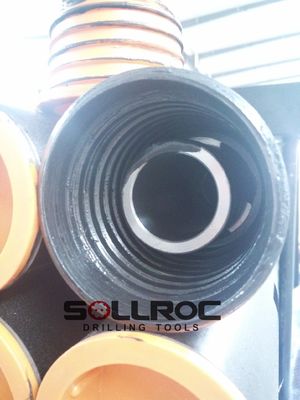

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
