Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Hole Drilling In Mines,Hydrology,exploration And Gravel Stratum |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Diameter: | 4 1/8'' | Shrould: | 103mm |
| High Light: | 105mm Reverse Circulation Bits,SRC531 Reverse Circulation Bits,Diameter 4 1/8'' RC Drill Bit |
||
SRC531 105mm Weight 4.5kgs With Drop Center Face Shape RC Drill Bit For Sampling
Product Introduce:
Reverse circulation or RC drilling is a fast and inexpensive method of drilling, particularly compared to diamond drilling. A hundred meters or more of drilling is possible a day. RC is a commonly used drilling method in the mineral exploration industry.
Specification:
SRC531-105mm bit
| Diameter | Buttons * button diameter | Shroud diameter (mm) | weight (kg) | ||
| mm | inch | Gauge | Centre | ||
| 105 | 4 1/8'' | 6*14mm | 6*12mm | 103 | 4.5 |
SOLLROC RC BIT model SRC531:
|
Diameter |
Buttons * button diameter |
Shroud diameter (mm) |
weight (kg) |
||
|
mm |
inch |
Gauge |
Centre |
||
| 84 | 3 5/16 | 6*13mm | 6*12mm | 82 | 3.8 |
|
86 |
3 3/8 |
6*13mm |
6*12mm |
84 |
3.9 |
|
89 |
3 1/2 |
6*13mm |
6*12mm |
87 |
4 |
| 92 | 3 5/8 | 6*14mm | 6*12mm | 90 | 4.1 |
|
95 |
3 3/4 |
6*14mm |
6*12mm |
93 |
4.2 |
| 100 | 3 15/16 | 6*14mm | 6*12mm | 98 | 4.3 |
| 105 | 4 1/8 | 6*14mm | 6*12mm | 103 | 4.5 |
Adavantages:
1. Direct drilling cost reductions in the range of 25% to 40%.
2. Faster completion of drill programs with quicker delivery of results.
3. Reduced man-hours at the drill with decreased exposure to potential accidents.
4. Minimizes hole erosion in fragile formations
5. Drills faster through soft formations with less blockages
6. Drills straighter through consolidated and unconsolidated formations

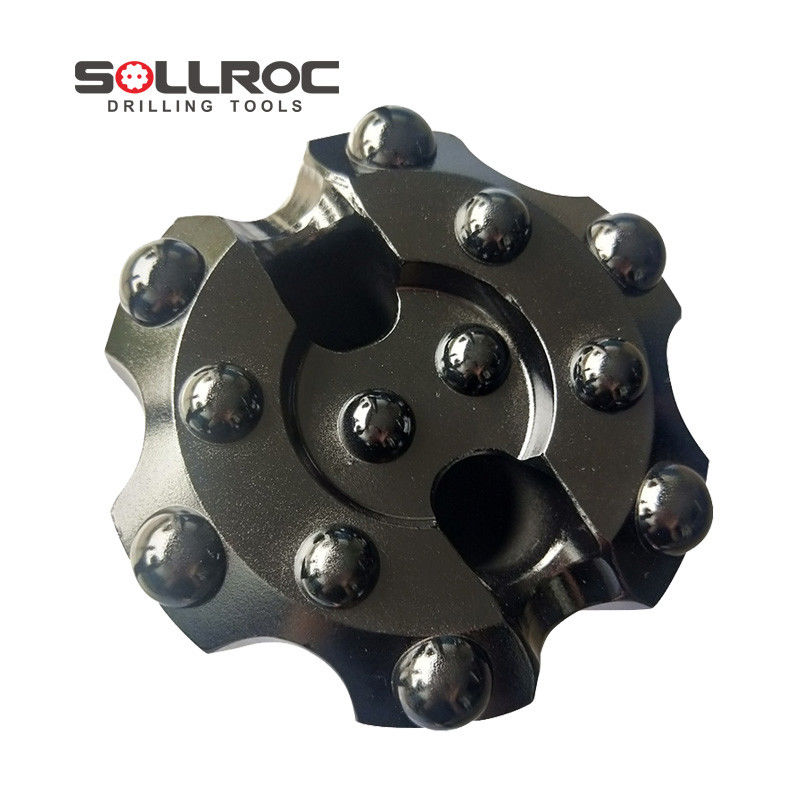

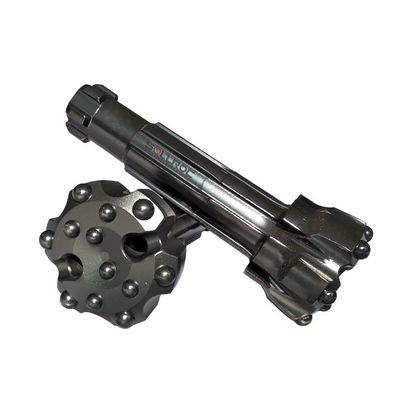

Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
Package :
Ply-wooden cases + pallet
