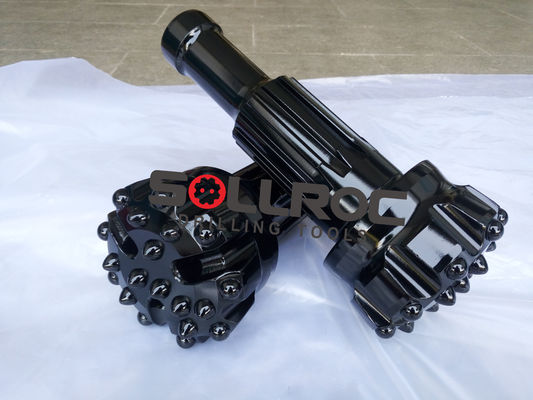

152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying

152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying
152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying 152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying 152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying 152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying

Large Image :  152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: M60
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: M60 DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: 6''
Bit Diameter: 152mm Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

M60 DTH Drill Bits

,

Alloy Steel DTH Drill Bits

,

152mm down the hole drilling tools

Black M60 DTH 6 inch Drill Bit With Alloy Steel Material For Drilling Blasting



Product description

DTH drilling tool is a kind of drilling system which uses compressed air as motivation, makes drilling impact motivation parts down the hole, to control the piston reciprocating motion by the distribution device in the hammer, and then impacts the DTH bit in the front of the hammer to transit the impacting power to the bit. The DTH bit in the front of the hammer breaks the rock to drill hole.



Product Advantages:

1. Long life of bit: alloy steel material has a long service life, which is higher than similar products;
2. High drilling efficiency: the drill teeth are wear-resistant, so that the drill bit can always be sharp, thus greatly improving the entering speed of the teeth;
3. Steady drilling speed: the drill bit breaks the rock by scraping and cutting;
4. Good spacing effect: the new diamond head has strong abrasion resistance and good spacing performance, which enables the cutting teeth to be utilized efficiently;
5. Wide application range: it has been proved by practice that this drill bit is suitable for drilling in soft and medium hard formations, such as carbonate rock, limestone, cretaceous rock, clay rock, siltstone and sandstone (below grade 9 of drillability,). Compared with general drills, especially in rock formations of grade 6-8, the effect is especially remarkable.





M60 DTH Drill Bit overview

For 6" hammer
DTH bits shank
Bit Dia.
(mm)
No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kg)
Part No.
mm inch
Mission60 152 6" 2 8×φ16 8×φ16 22.0 M60-152
165 6 1/2" 2 8×φ18 8×φ16 23.0 M60-165
178 7" 2 8×φ18 8×φ18 24.0 M60-178
190 7 1/2" 3 9×φ18 9×φ16 25.0 M60-190
203 8" 3 9×φ18 9×φ18 28.0 M60-203



Face shape Features

Concave Face

1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated

2. Offers high penetration rate in the above stated rock conditions

3. Has excellent air flushing characteristics

4. Predominant face style for majority of drilling conditions

Flat Face

1. Have a superior performance in hard, abrasive and broken rock conditions

2. They however have a slower penetration rate in comparison to a concave face bit

Convex Face

1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc

2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

152mm Black Alloy Steel M60 DTH Drill Bits For Quarrying 0
