Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | SRC545 | ||
| High Light: | 5'' Shank RC Hammer,SRC545 RC Hammer,Mineral Exploration Reverse Circulation Hammer |
||

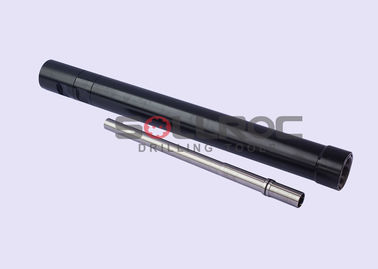

5'' Shank SRC545 Reverse Circulation RC Drill Hammer For Mineral Exploration
Product Introduce:
RC drilling is commonly employed in open-cut mines and used for pit grade control and in delivering useful insight for mine planning and blasting. It has an optimal depth of between 300-500 metres.
RC grade control is extremely effective in defining boundaries between ore bodies and waste rock
RC drilling is ideal for exploration, as it delivers contaminant-free samples, which are collected at the drill itself and can be sent immediately for assessment. It also reduces handling time, which in turn can serve to reduce overall program costs.
SOLLROC RC SRC545 hammer technical date:
| Length (less bit) | 1261mm | |
| Weight (less bit) | 65kg | |
| External diamater | φ117.5mm | |
| Bit shank | SRC545 | |
| Hole range | φ122-φ135 | |
| Connection thread | 4"-4.5" Remet 4"-4.5" Metzke |
|
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |

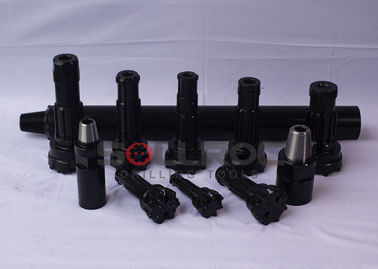

Other size RC hammer specification
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SRC040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
Adavantages:
1.Achieves greater penetration in hard rock than air core drilling,
2. The collected samples have an exact location and depth where they were acquired, making it easier to more precisely locate mineral deposits.
3.Ideal for harsh environments. RC drilling uses approximately 40% less water than diamond drilling, making it a better option for remote area drilling.
4.Reduced risk of cross-contamination. As the cuttings travel through the drill bit’s inner tube and aren’t introduced to other areas of the drill hole, the samples remain uncontaminated.
5.Faster and more efficient, reducing costs and providing greater returns. RC drilling achieves higher production rates and can achieve up to 200/300 metres per day. This means that results can be delivered to clients faster, as the drilling itself takes less time.

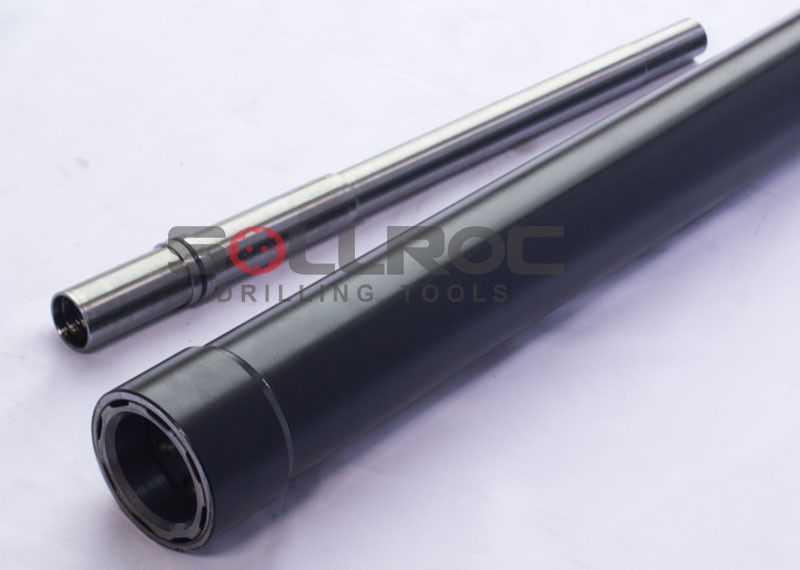

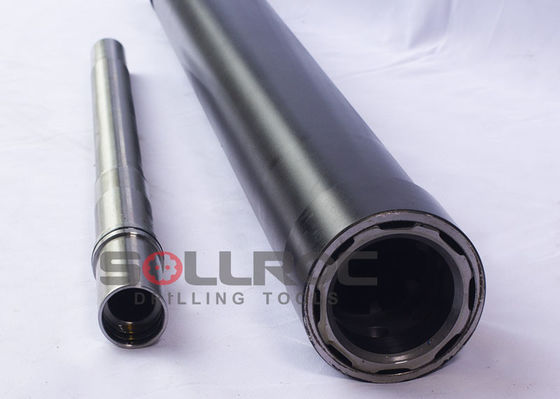

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
