Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | 165mm DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 6 1/2" |
| Bit Diameter: | 165mm | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | 165mm Rock Drilling Bits,Mission60 Rock Drilling Bits,Mission60 Down The Hole Drilling Bits |
||

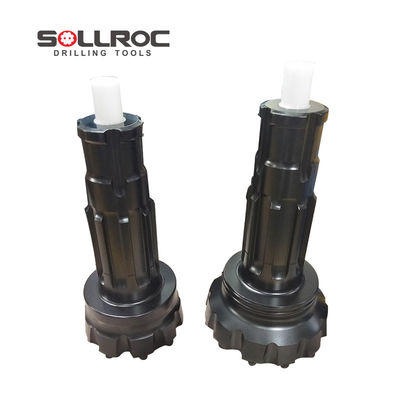

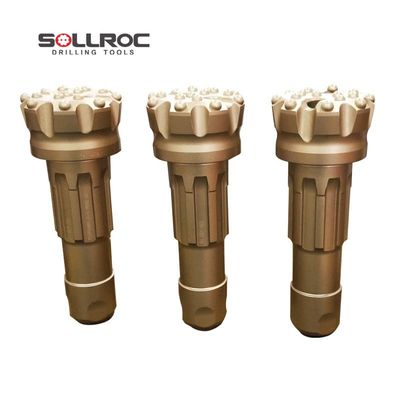

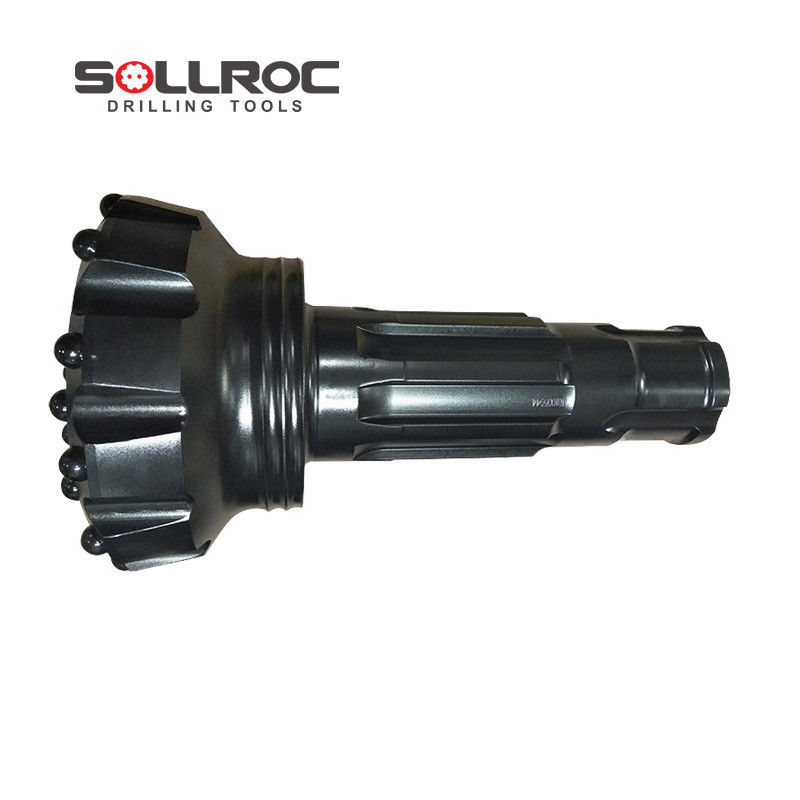

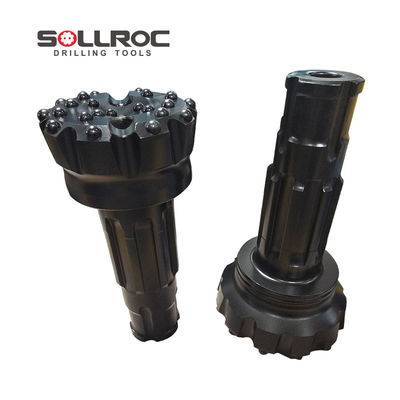

Down The Hole DTH Hammer M60 165mm Rock Drilling Button Bits/ Drill Bits
Product description
DTH hammer drilling is the industry standard for the rapid drilling of boreholes for a variety of uses such as water wells, blasting and sub-surface void locations.
With the increased availability of efficient high pressure compressors operating up to 25 bar (in some cases with even higher pressures) boreholes can be drilled in even the hardest rocks much quicker than using conventional tricone rock roller drilling techniques.
M60-165mm dth bits specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| Mission60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 22.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 23.0 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 24.0 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 25.0 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 28.0 | M60-203 | |
Product Advantages:
1. Available with all major drill bit shank designs
2. Three drill bit face designs: concave, flat, convex
3. High quality tungsten carbide buttons
4. Proprietary heat-treatment process for superior hardness and wear resistance
Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock conditions
2. They however have a slower penetration rate in comparison to a concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
