Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | 4.5'' | ||
| High Light: | 4.5 Inch RC Hammer,Sampling Metzke Thread RC Hammer,4.5 Inch Reverse Circulation Hammer |
||

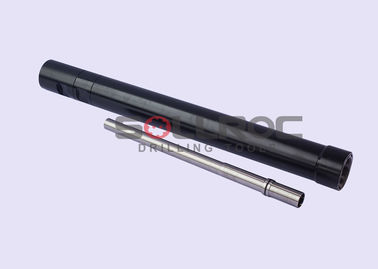

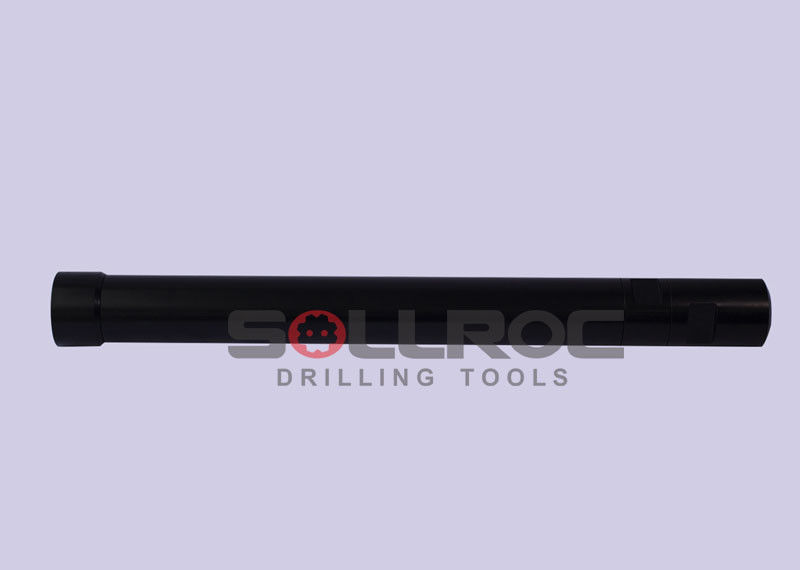

4.5" Reverse Circulation RC Hammer with Remet and Metzke Thread for Sampling
Product Introduce:
Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
RC bits shank 4.5''
RC bits Model SRC542
| Diameter |
No x Button diameter mm |
Button angle | Flushing holes |
Shroud Dia mm |
Weight (kg) |
Part No. | ||
| mm | inch | Gauge Button | Front Button | |||||
| 121 | 4 3/4 | 8 x 14mm | 8 x 13mm | 35 | 2 | 119 | 10.7 | RC4.5-E542-121 |
| 124 | 4 7/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 122 | 10.9 | RC4.5-E542-124 |
| 127 | 5 | 8 x 14mm | 8 x 14mm | 35 | 2 | 125 | 11.2 | RC4.5-E542-127 |
| 130 | 5 1/8 | 8 x 16mm | 8 x 14mm | 35 | 2 | 128 | 11.5 | RC4.5-E542-130 |
| Diameter |
No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm |
Weight (kg) |
Part No. | ||
| mm | inch | Gauge Button | Front Button | |||||
| 124 | 4 7/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 122 | 11.0 | RC4.5-E543-124 |
| 127 | 5 | 8 x 14mm | 8 x 14mm | 35 | 2 | 125 | 11.2 | RC4.5-E543-127 |
| 130 | 5 1/8 | 8 x 16mm | 8 x 14mm | 35 | 2 | 128 | 11.4 | RC4.5-E543-130 |
| 133 | 5 1/4 | 8 x 16mm | 9 x 14mm | 35 | 2 | 131 | 11.7 | RC4.5-E543-133 |
Adavantages:
1. Reduced risk of cross-contamination. As the cuttings travel through the drill bit’s inner tube and aren’t introduced to other areas of the drill hole, the samples remain uncontaminated.
2. Faster and more efficient, reducing costs and providing greater returns. RC drilling achieves higher production rates and can achieve up to 200/300 metres per day. This means that results can be delivered to clients faster, as the drilling itself takes less time. The speed and efficiency involved also reduces manhours on the drill rig, meaning savings on overall staff hours. Thanks to the power and efficiency of the equipment, RC drilling is more resilient in harsh environments, which makes it a cheaper option overall. In fact, RC drilling has been shown to reduce costs by 25-40%.
Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
