Product Details:
|
| Application: | Quarrying, Construction | Usage: | Geothermal Drilling |
|---|---|---|---|
| Product Name: | Dth Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Advantage: | Best Quality | Color: | Black Or As Request |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Size: | Full Size | Air Pressure: | High |
| High Light: | High Productivity Down The Hole Hammer,DHD Down The Hole Hammer,Well Drilling DTH Hammer |
||
High Productivity DTH Hammer for Well Drilling (DHD, SD, QL, Mission, Numa, Cop)
Product Description:
When you need to drill high quality holes with diameters between 100-254 mm, DTH (Down The Hole) drilling is by far the best and most effective method. DTH drilling can be performed in most types of rock, hard or soft. It's a commonly used method in the mining industry (blast hole drilling), waterwell drilling, construction, and in the oil and gas industry.
Product Advantages:
1. Better borehole quality and accuracy
2.Lower operating costs, as the same drill will be used for drilling through dirt and rock.
3.The use of air makes this method very cost-effective as air does not have to be sourced, transported or treated.
4.Less amount of drilling fluid and additives are required.
5.Less weight-on-bit allows for lighter rigs that are easier to set up and takedown.
DTH Hammer Specification:
Hammers |
Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers | BR1 BR2 BR3 |
RD40 box RD50 box API 2 3/8" Reg |
¢64-¢76mm ¢70-¢90mm ¢90-¢110mm |
0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa |
0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | |||||
| 1.4Mpa | 5m3/min | |||||
| 3" hammers | DHD3.5 COP32/COP34 M30 |
API 2 3/8"Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| 1.5Mpa | 9m3/min | |||||
| 4" hammers | DHD340 COP44 QL40 SD4 M40 |
API 2 3/8"Reg | ¢105-¢130mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| 1.8Mpa | 10m3/min | |||||
| 2.4Mpa | 15m3/min | |||||
| 5" hammers | DHD350 COP54 QL50 SD5 M50 |
API 2 3/8"Reg/API 3 1/2"Reg | ¢130-¢156mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| 1.8Mpa | 15m3/min | |||||
| 2.4Mpa | 23m3/min | |||||
| 6" hammers | DHD360 COP64 QL60 SD6 M60 |
API 3 1/2"Reg | ¢152-¢203mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| 1.8Mpa | 20m3/min | |||||
| 2.4Mpa | 28.5m3/min | |||||
| 8" hammers | DHD380 COP84 QL80 SD8 |
API 4 1/2"Reg | ¢200-¢279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| 1.8Mpa | 26m3/min | |||||
| 2.4Mpa | 34m3/min | |||||
| 10" hammers | SD10 NUMA100 |
API 6 5/8"Reg | ¢254-¢330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| 1.8Mpa | 40m3/min | |||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 SD12 NUMA120 NUMA125 |
API 6 5/8"Reg | ¢305-¢381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| 1.8Mpa | 56m3/min | |||||
| 2.4Mpa | 78m3/min | |||||

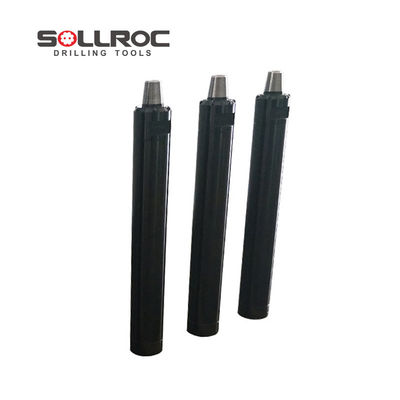

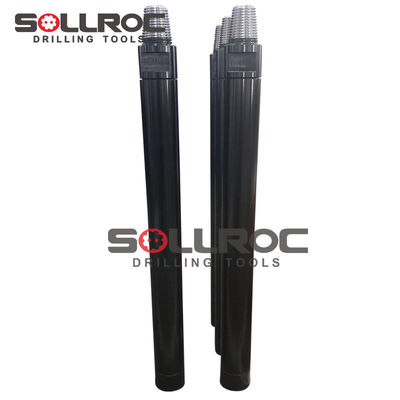

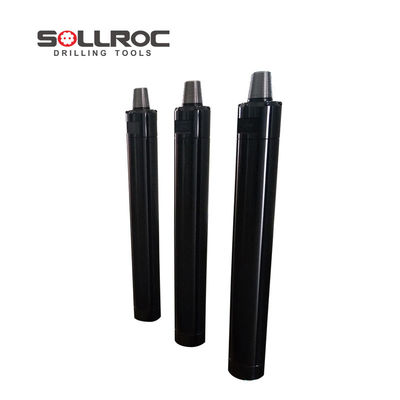

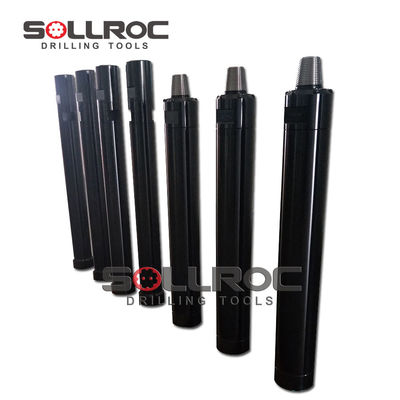

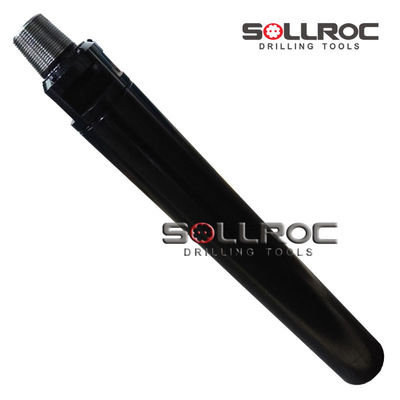

Detailed Photos:
Application:
