Product Details:
|
| Product Name: | Mission80 M80 Dth Drill Bits | Color: | Black Or Optional |
|---|---|---|---|
| Air Pressure: | 10-25 Bar | Applications: | Water Well Drilling, Mining, Rock Drilling |
| Face Shape: | Flat, Convex, Concave | Diameter: | 203mm,254mm,279mm,305mm |
| Connection Thread: | API 4 1/2" Reg | Size: | 8",9",10",12" |
| High Light: | rock drilling tools,water well drilling tools |
||

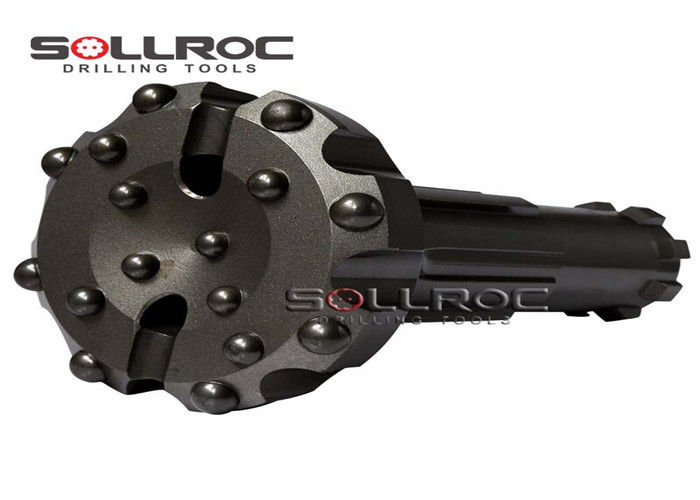

10" DTH Hammer Bits 254mm M80 Mission80 DTH Bit Rock Drill Bits
The dth button bits are made of superior quality alloy steel which is made by Timken in U.S. Besides, all our DTH bits are using the brand "Element Six" T.C carbide which provides (the T.C buttons) for Boart Longyear. In addition art manufacturing technology makes our dth button bits with higher and more reliable quality.
Product specifications: M80 Mission80 DTH bits
| Model | Bit Diameter | Air Holes | Qty*Button Dia(mm) | Weight | |
| mm | Gauge | Front | kg | ||
| M40 | 105 | 2 | 6*14 | 5*13 | 6 |
| 110 | 2 | 7*14 | 6*13 | 6.2 | |
| 115 | 2 | 7*14 | 7*13 | 6.6 | |
| 120 | 2 | 8*14 | 7*14 | 7 | |
| 127 | 2 | 8*14 | 7*14 | 7.4 | |
| M50 | 135 | 2 | 7*18 | 7*14 | 12.5 |
| 140 | 2 | 7*18 | 7*14 | 13.5 | |
| 146 | 2 | 8*18 | 7*14 | 14 | |
| 152 | 2 | 8*18 | 8*14 | 14.4 | |
| 165 | 2 | 8*18 | 8*16 | 15 | |
| M60 | 152 | 2 | 8*18 | 8*16 | 22.0 |
| 165 | 2 | 8*18 | 10*16 | 23.0 | |
| 175 | 2 | 8*18 | 10*16 | 24.0 | |
| 195 | 2 | 10*18 | 12*16 | 25.0 | |
| 203 | 2 | 10*18 | 14*16 | 28.0 | |
| M80 | 195 | 3 | 10*18 | 13*16 | 35.0 |
| 203 | 2 | 10*18 | 14*18 | 40.0 | |
| 216 | 2 | 12*18 | 18*16 | 54.0 | |
| 254 | 3 | 12*18 | 21*16 | 57.0 | |
| 305 | 4 | 12*18 | 29*16 | 77.0 | |
| Bit size | Shank type | Recommended DTH bits diameter |
| 3.5”/3” DTH hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm~ 105mm |
| 4” DTH hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm~ 130mm |
| 5” DTH hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm~ 152mm |
| 6” DTH hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm~ 203mm |
| 8” DTH hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm~ 305mm |
| 12” DTH hammer bits | DHD112, SD12 and QL120 shank. | Available upon to customers’ request |
Product photos
