DTH Drilling Down The Hole Hammer 5 Inch Without Footvalve For Shank QL50

China DTH Drilling Down The Hole Hammer 5 Inch Without Footvalve For Shank QL50 supplier

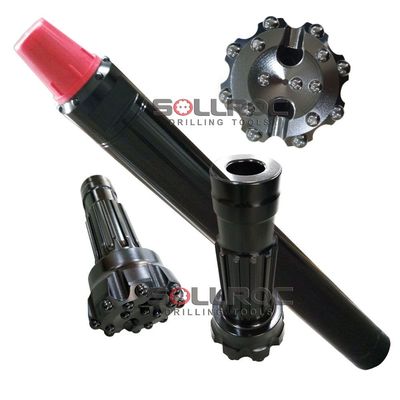

Large Image :  DTH Drilling Down The Hole Hammer 5 Inch Without Footvalve For Shank QL50

Product Details:

Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: IR QL50 shank

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: Carton + plywood case + pallet + mark
Delivery Time: 3-4 weeks
Payment Terms: Western Union, L/C, T/T, MoneyGram, D/P
Supply Ability: 2500 set per month
Contact Now
Detailed Product Description
Brand: SOLLROC Material: Quality Alloy Steel
Air Pressure: 10-25bar Bits Dia.: 135mm- 155mm
Air Consuption: 247-670CFM Applications: Blasting Hole
Advantage: Fast Speed And Efficiency Package: For Sea Worthy Or Air Worthy

DTH Drilling Down The Hole Hammer 5 Inch Without Footvalve For Shank QL50



Future:



1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.


2. Smooth performance and long service life of SOLLROC DTH hammer due to high quality alloy steel materials and advanced producing technology.


3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.


4. Interchangeable with DTH bit and drill pipe.



Our QL-A series DTH hammer without footvalve products specifications:



Shank Fit IR QL50 shank
Length (less bit) 1090mm
Outer diameter 125mm
Top sub thread API 2 3/8" REG pin /API 3 1/2" REG pin
Weight (less bit) 65kg (143lbs)
Hole range 135mm-155mm
Working pressure 10-25bar
Impact rate at 1.7 Mpa 28Hz
Recommended rotation speed 20-35r/min
Air consumption at 7-14 bar 247-670CFM



Shank can be available:

1), Dia. 64mm-70mm shank BR1
2), Dia. 70mm-95mm shank MACH20, BR2
3), Dia. 90mm-102mm shank COP32, COP34, MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, MACH44, SD4, M40, QL40
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, MACH50, SD5, M50, QL50
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...

We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc



Our QL-A serises (without footvalve/Nylon tube) DTH hammer specifications:

DTH hammer type QL30A QL40A QL50A
Length(less bit) mm 888 1070 1090
Weight(less bit) kg 25kg (55lbs) 40kg(88lbs) 65kg(143lbs)
External diameter mm Φ82mm Φ99 Φ125
Bit shank QL30 QL40 QL50
Hole range(mm) Φ90-110mm Φ110-130mm Φ135-165mm
Connection thread API 2 3/8" Reg. API 2 3/8"Reg API 2 3/8"Reg
Working pressure 1.0-1.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa
Impact rate at 1.5-1.7Mpa 25Hz 30Hz 28Hz
Recommended Rotation speed 25-40r/min 25-40r/min 20-35r/min
Air consumption 1.0Mpa 3.8m3/min 5m3/min 7m3/min
1.8Mpa 7.5m3/min 9m3/min 14m3/min
2.4Mpa / 14m3/min 19m3/min




DTH hammer type QL60A QL80A
Length(less bit) mm 1183 1359
Weight(less bit) kg 92kg(202lbs) 175kg(374lbs)
External diameter mm Φ146-148 Φ185
Bit shank QL60 QL80
Hole range(mm) Φ155-190mm 195mm-254mm
Connection thread API 2 3/8"Reg API 4 1/2"Reg
Working pressure 1.0-3.0Mpa 1.0-3.0Mpa
Impact rate at 1.7Mpa 25Hz 22Hz
Recommended Rotation speed 20-30r/min 15-25r/min
Air consumption 1.0Mpa 9m3/min 12m3/min
1.8Mpa 18m3/min 22m3/min
2.4Mpa 26m3/min 28m3/min

The information you may like to know before order:



SOLLROC Provide high efficiency and durable hammer all over the world.





Products photoes
