Place of Origin: | China |
---|---|
Brand Name: | SOLLROC |
Certification: | SGS |
Model Number: | DTH hole opner bits |
Minimum Order Quantity: | 1 set |
Packaging Details: | Cartons + ply wood case (no plastic) |
Delivery Time: | 3-4 weeks |
Supply Ability: | 20000 sets per month |
Product Name: | DTH Hole Opner Bits | Color: | Black Or Optional |
---|---|---|---|
Air Pressure: | 10-35 Bar | Applications: | Mining, Rock Blasting Drilling |
Shank: | DHD,SD,QL,MISSION | Diameter: | 152mm-305mm |
High Light: | oil well drilling tools,water well drilling tools |
DTH Hole Opener Bits DTH Drill Bits DTH Reamer For Rock Drilling
Product specifications: DTH Opener Bit
DTH hole openers are used to enlarge the size of a pilot hole most commonly used in industrial applications. Benefits of drilling a smaller pilot hole and then using a hole opener are:
Wear pads, back reamer buttons, and or buttons on the pilot can be added for an additional fee.
The ability to use less powerful equipment than that required to drill the large diameter hole.
All Hole Openers are manufactured from the highest quality aircraft alloy steel.
Straigher holes result from the smaller pilot hole.
Better clearing of cut material.
Sollroc has a large variety of Hole Openers on the shelf, offers a full line of standard and custom Hole Openers in all sizes (from 2 3/4" thru 36") for all industry hammer shanks, and if we don't have what you're looking for we can have one custom-made to your specific application. All of the Hole Openers that we build are China-made and of the best material available.
Hammer Size | Hammer Shank | Guide Dia | Reamed Dia | ||
mm | inch | mm | inch | ||
3.5 | DHD3.5,QL30,Cop32,Cop34 | 80-110 | 3 1/8-4 5/16 | 130-165 | 5 1/8-6 1/2 |
4 | DHD340,Cop44,QL40,SD4,Mission40 | 82-115 | 3 1/4-4 1/2 | 165-178 | 3 1/2-7 |
5 | DHD350,Cop54,QL50,SD5,Mission50 | 75-138 | 2 15/16-5 3/8 | 152-216 | 6-8 1/2 |
6 | DHD360,Cop64,QL60,SD6,Mission60 | 108-296 | 4 1/4-11 5/8 | 191-381 | 7 1/2-15 |
8 | DHD380,Cop84,QL80,SD8,Mission80 | 140-296 | 5 1/2-11 5/8 | 200-381 | 7 7/8-15 |
10 | SD10,Numa100 | 305-311 | 12-12 1/4 | 445-482 | 17 1/2-19 |
12 | DHD1120,SD12,Numa120,Numa125 | 216-445 | 8 1/2-17 1/2 | 312-660 | 12 5/16-26 |

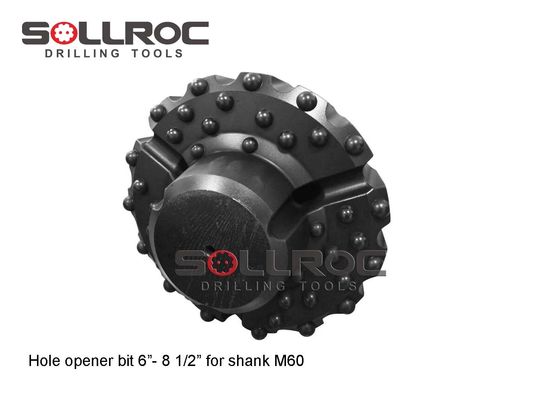

Product photos
