Product Details:
|
| Product Name: | DHD,SD,QL,MISSION,NUMA Dth Bits | Color: | Black Or Optional |
|---|---|---|---|
| Air Pressure: | 10-35 Bar | Applications: | Water Well Drilling, Mining, Rock Drilling |
| Face Shape: | Flat, Convex, Concave | Diameter: | 76mm-900mm |
| Connection Thread: | API 2 3/8" Reg-API 6 5/8" | Size: | 3"-35" |
| High Light: | oil well drilling tools,water well drilling tools |
||
DTH Bits DTH Button Bits DTH Drill Bits DTH Hammer Bits Down Hole Bits
Different face style makes DTH bits suitable for various rock conditions.
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers.
Product specifications: DTH Bits DTH Button Bits DTH Drill Bits DTH Hammer Bits
| Hammer inch | Bits diameter | Shank | |
| Metric | Inch | ||
| 1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 |
| 2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 |
| 3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 M30/DHD3.5/BR3 |
| 4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 SD4/M40/QL40 |
| 5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 SD5/M50/QL50/BR5 |
| 6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 M60/QL60/Bulroc BR6 |
| 8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 QL80/M80 |
| 10" | 254mm-380mm | 10"-15" | SD10 NUMA100 |
| 12" | 305mm-508mm | 12"-20" | DHD1120/SD12 NUMA120/NUMA125 |
| Bit size | Shank type | Recommended DTH bits diameter |
| 3.5”/3” DTH hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm~ 105mm |
| 4” DTH hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm~ 130mm |
| 5” DTH hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm~ 152mm |
| 6” DTH hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm~ 203mm |
| 8” DTH hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm~ 305mm |
| 12” DTH hammer bits | DHD112, SD12 and QL120 shank. | Available upon to customers’ request |

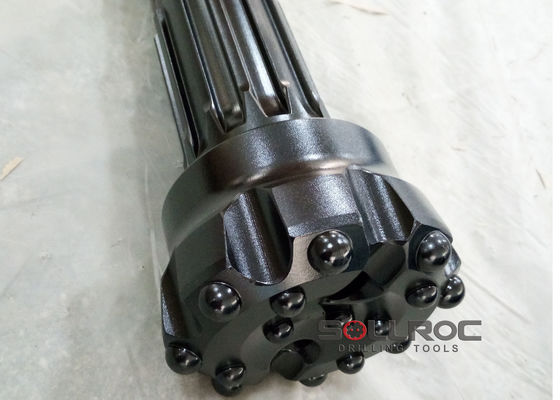

Product photos
