Product Details:
|
| Material: | Quality Alloy Steel And Carbide | Advantage: | Long Life And Costly |
|---|---|---|---|
| Diameter: | 32mm,34mm, 36mm, 38mm, 40mm,42mm | Applications: | Small Hole Drilling, Drifting Drilling |
| Degree: | 6, 7, 11, 12 Degree | Buttons: | 5-9 Buttons |
| Body: | Short And Long Skirt | ||
| Highlight: | ballistic button bits,small rock drill bits |
||

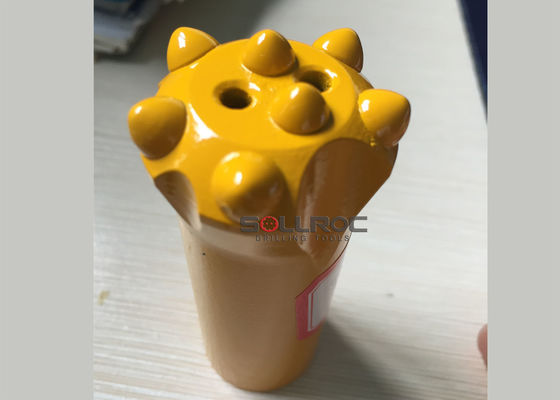

Small Hole Drilling Tapered ToolsTapered Button Bits 32mm to 43mm
Product specifications:
Diameter: 28mm-70mm
Degree: 4°,6°,7°,11°and 12°
Type: Chisel bit, Cross bit and Button bit
Skirt: Short or Long Skirt
| Drill bit diameter | Taper(°) | |
| (mm) | (in) | |
| 28 | 1 3/32 | 6,7 |
| 30 | 1 3/16 | 6,7 |
| 32 | 1 1/4 | 6,7,11,12 |
| 34 | 1 11/32 | 6,7,11,12 |
| 35 | 1 3/8 | 6,7,11,12 |
| 36 | 1 13/32 | 6,7,11,12 |
| 38 | 1 1/2 | 6,7,11,12 |
| 40 | 1 9/16 | 6,7,11,12 |
| 41 | 1 5/8 | 6,7,11,12 |
| 42 | 1 21/32 | 6,7,11,12 |
| 43 | 1 11/16 | 6,7,11,12 |
| 45 | 1 3/4 | 6,7,11,12 |
| 50 | 1 31/32 | 6,7,11,12 |
| 60 | 2 3/8 | 6,7,11,12 |
Tapered cross bit
Used under any rock drilling condition and mainly used for hard or very hard rock formation because of it's comprehensive adaptability. Compared with taper chisel bits, taper cross bits have a better drilling performance because of carbide tips on cross bits doubled, which means carbides shape are cross type on drill bits. Taper cross bit is mainly used for hard or very hard rock formation.
| Description | Diameter | Length | Weight |
| Taper degree a=6 °,7°,11°,12° ; Socket inside d=19,22,25mm | mm | mm | kg |
| 28 | 71 80 | 0.19 | |
| 29 | 71 80 | 0.2 | |
| 30 | 50 67 71 80 | 0.3 | |
| 32 | 50 67 71 80 | 0.3 | |
| 33 | 71 80 | 0.32 | |
| 34 | 67 71 80 | 0.34 | |
| 35 | 67 71 80 | 0.35 | |
| 36 | 71 80 | 0.36 | |
| 38 | 67 71 80 | 0.42 | |
| 40 | 71 80 | 0.43 | |
| 41 | 71 | 0.45 | |
| 42 | 69 80 | 0.46 | |
| 44 | 80 | 0.47 | |
| 45 | 80 | 0.5 |
We can guarantee all our product:
(1) Direct factory wholesale price, price is cheaper than trading companies.
(2) Strict Quality Control Department, each piece bit need to be checked.
(3) Accept custom order. can special make for you.
(4) Focus on the quality.We seek long-term interest.
(5) Welcome small orders, our Min Quantity Order is 1 piece.
Other button bits available:
Button bits
| Skirt: | Straight (Regular skirt), Retrac and Straightrac (Sprial skirt) |
| Bits diameter | 45mm-152mm |
| Thread | R22, R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58,T68 |
| Face design | Flat face, drop center, uniform face |
| Button selection | Spherical and ballistic |
Cross bits and X bits
| Skirt: | Straight (Regular skirt) and Retrac |
| Bit diameter | 45mm-127mm |
| Thread | R22, R25, R28, R32, R35, R38, T38, T45, T51, T60, ST58,T68 |
