3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread

China 3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread supplier
3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread supplier 3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread supplier

Large Image :  3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread

Product Details:

Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 4"-20" with API thread

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: carton + ply wooden case + pallet for seaworthy or airworthy
Delivery Time: 1-2 weeks
Supply Ability: 20000 sets per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide With Steel Color: As Request
Connection: API Thread Applications: Oil,gas And Water Well Drilling
Keeywords: Tricone Drill Bit Bearing:: Rubber Sealed Bearing
Size: 3 3/4"~26" IADC: 625 635 416 427 436 446 447 516 526 537 547 516 536 535





Tungsten Carbide Insert Bits Tricone Roller Drill Bits RocK Roller Bits



Product specifications:

Tricone bits are available in new and used (re-tip and re-run) steel tooth and tungsten carbide insert, size from 3 3/8”(85.7mm)

to 26”(660.4mm) for use in all formations, with any bearing/seal type, and a wide range of additional custom features.

Tricone bit, are widely used in mining, oil well, water well, thermal drilling.



1, The bearings adopt high precision radial sliding two way thrust bearings,teeth bearing surface hardfacing of hard alloy layer,the roller bearing is made of alloy after welding to improve the carrying capacity and anti bite ability.
2, Using high-precision metal seal. The metal seal is sealed by a carefully designed metal seal ring as a bearing, and two highly resilient rubber seals are located in the palm and the seal area of the teeth as a static seal. The optimized seal compression ensures that the two metal rings The sealing surface always maintains good contact.
3, Steel ball locking cone, suitable for high speed.
4, The use of a limited pressure differential and to prevent the drilling fluid into the lubrication system of the whole rubber reservoir, to provide a good lubrication guarantee for the bearing system .
5, Using the new grease with high resistance to 250 degrees Celsius and anti-wear.



Bit type:

Bit size Bit type
in mm
7 7/8 200 IADC437, IADC447,IADC517,IADC537
8 1/2 215.9 IADC417,IADC437,IADC447,IADC517,IADC527,IADC537,IADC547
8 3/4 222.3 IADC437, IADC447,IADC517,IADC527
9 1/2 241.3 IADC437, IADC447,IADC517,IADC537,IADC547
9 7/8 250.8 IADC437,IADC517
10 1/2 266.7 IADC517,IADC537,IADC547
10 5/8 269.9 IADC517,IADC537,IADC547
12 304.8 IADC517,IADC537,IADC547
12 1/4 311.25 IADC417,IADC437,IADC447,IADC517,IADC537
13 1/2 342.9 IADC517,IADC537,IADC547
14 3/4 374.7 IADC517,IADC537,IADC547
17 1/2 444.5 IADC517,IADC527
18 7/8 479.4 IADC517,IADC537





Recommended drilling parameters:

IADC

WOB

(KN/mm)(Bit Dia)

RPM(r/min) Applicable Formations
117 0.35-0.8 240-80 Very soft formations with low compressive strength and high drillability,such as clay, mudstone,chalk,etc
127 0.35-0.9 240-70 Soft formations with low compressive strength and high drillability, such as mudstone,gypsum,salt, soft shale,soft limestone,etc
217 0.35-0.9 240-70 Meidum hard with low compressive strength and high drillability.such as hard shale, sandstone and limestone,etc
417 0.35-0.9 240-70 Very soft formations with low compressive strength and high drillability,such as clay,mudstone,chalk,gypsum,salt,soft shale,soft limestone,etc
437 447 0.35-0.9 240-70 Very soft formations with low compressive strength and high drillability, such as clay,mudstone,chalk,gypsum,salt,soft shale,soft limestone,etc
517 527 0.35-1.0 220-60 Soft formations with low compressive strength and high drillability,such as mudstone,gypsum,salt, soft shale,soft limestone,etc
537 0.45-1.0 220-50 Meidum hard with low compressive strength, such as medium soft shale, medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,etc.
617 627 0.45-1.1 200-50 Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,etc
637 0.5-1.1 180-40 Hard formations with high compressive strength, such as sandstone, limestone, dolomite, hard gypsum, marble,etc.
737 0.5-1.1 150-40 Hard formations with high compressive strength,such as hard limestone,dolomite,hard sandstone,chert,basalt,etc

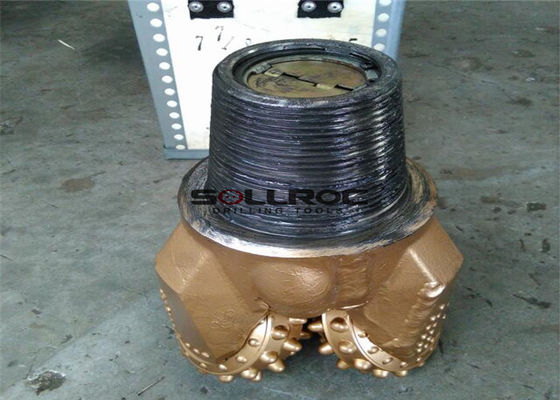

Product photos:



3 3/4" - 26" Tricone Drill Bit Tungsten Carbide Insert RocK Roller Bits With API Thread
