Product Details:
|
| Material: | Alloy Steel | Connection Thread: | 4" Or 4.5" Remet Or 4" Or 4.5" Metzke |
|---|---|---|---|
| Applications: | Deep Hole Exploration Drilling And Mining Ore Grade Control | Bit Face Shape: | Drop Center, Concave, Flat Face, Convex |
| Shank: | SRC545 | External Diameter: | 117.5mm (4.63inch) |
| Working Pressure: | 15-35 Bar | Hole Range: | 122-135mm |
| Highlight: | reverse circulation hammers,reverse circulation drilling |
||

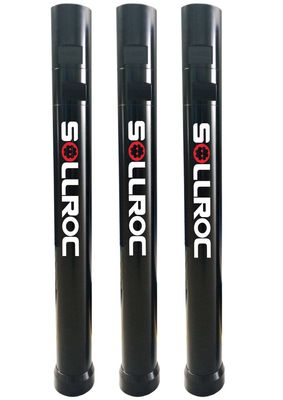

5 inch RC hammer Reverse Circulation Hammers shank SRC545
It has the following characteristics:
- Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.
- In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.
SOLLROC RC hammer model SRC545 specifications:
| Overall Length (less bit) | 1261mm |
| Weight (less bit) | 65kg (143lbs) |
| External Diameter | 117.5mm |
| Fit bit shank | SRC545 |
| Hole range | 122-135mm |
| Top sub thread | 4" or 4.5" Remet or 4" or 4.5" Metzke |
| Working presure | 15-35 bar |
| Impact rate at 2.4 Mpa | 30Hz |
| Air comsumption | 565-988CFM |
SOLLROC RC hammers available:
1) 3" RC hammers: connection thread 3" Remet
2) 3.5" RC hammers: connection thread 3" Remet
3) 4'' RC hammers: connection thread 3.5"/4" Remet; 4" Metzke
4) 4.5" RC hammers: connection thread 3.5"/4" Remet; 4" Metzke
5) 5'' RC hammers: connection thread 3.5"/4.5" Remet; 3.5"/4.5" Metzke
6) 5.5'' RC hammers: connection thread 4.5" Remet; 4.5" Metzk
SOLLROC Provide high quality and durable products to our customers.
