Product Details:
|
| Product Name: | GT60 Button Bit | Color: | Black |
|---|---|---|---|
| Applications: | Used In Mining, Quarrying, Rock Drilling,blasting | Face Shape: | Flat, Drop Center |
| Diameter: | 102mm, 115mm,127mm, 140mm,152mm | Material: | Carbide, Steel Skirt And Carbide Bit |
| Highlight: | hard rock tools,borehole drilling tools |
||

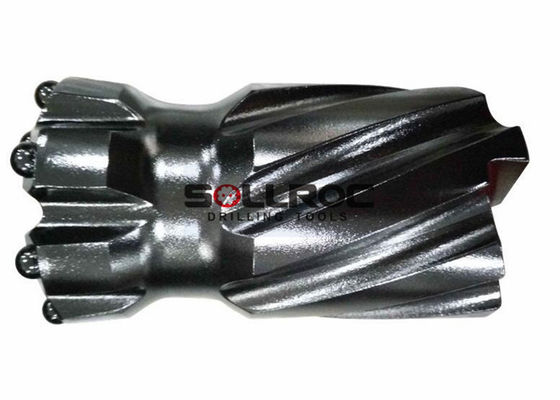

GT60 Retrac Button Drill BitTop Hammer Drilling Tools rock drill Consumables
Product specifications: GT60 Button Bit
| Type | Dia(mm) | Front buttons | Guage buttons | Side Flu.holes | Front Flu holes | Weight(kg) |
| Normal Body | 92 | 13x4,13x1 | 13x8 | 4 | - | 5.3 |
| 96 | 13x4,13x1 | 14x8 | 4 | - | 5.6 | |
| 102 | 11x9 | 13x9 | 3 | - | 6 | |
| 115 | 12x10 | 14x9 | 3 | - | 6.8 | |
| 127 | 13x10 | 14x9 | 3 | - | 7.5 | |
| 140 | 14x10 | 16x9 | 3 | - | 9 | |
| 152 | 14x12 | 16x9 | 3 | - | 10.6 | |
| Retrac Body | 92 | 12x9 | 12x9 | 2 | - | 5.4 |
| 96 | 12x9 | 12x9 | 2 | - | 6.3 | |
| 102 | 12x10 | 13x9 | 2 | - | 7.3 | |
| 115 | 12x10 | 14x9 | 3 | - | 9.8 | |
| 118 | 13x6 | 16x9 | 3 | 10 | ||
| 127 | 13x10 | 14x9 | 3 | - | 12 | |
| 140 | 14x10 | 16x9 | 3 | - | 14.0 | |
| 152 | 14x12 | 16x9 | 3 | - | 16 |
Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60,GT68
Button bit face design: Flat face, drop centre, Normal and Retrac body.
Tungsten carbide (Buttons): Spherical, ballistic and Conical. (Threaded R32, R38, T38, T45, T51, bit diameter: 43mm-152mm);
Main button bits diameters:
R32-45mm, R32-51mm, R32-64mm, R32-76mm, R32-89mm
T38-64mm, T38-76mm, T38-89, T38-102mm,
T45-76mm, T45-89mm, T45-102mm,
T51-89mm, T51-102mm, T51-127mm
ST58-89mm, ST58-102mm, ST58-115mm, ST58-127mm
GT60-102mm, GT60-115mm, GT60-127mm, GT60-152mm
ST68-115mm, ST68-127mm, ST68-140mm, ST68-152mm
Product Photos
About Us:
Sollroc with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools.
