Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod

Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod
Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod

Large Image :  Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGA
Model Number: 3"-5 1/2"
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 70-1000
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18-25 working days
Payment Terms: T/T,

Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod

Description
Name: API 2 3/8"reg And API 3 1/2"reg Friction Welded DTH Drill Pipe/drill Rod Machine Type: Drilling Tool
Processing Type: Forging Application: Coal Mining,Quarry Drilling
Use: Well Drilling Material: High Carbon Steel
Color: Blue, Or Required Diameter: 76mm To 152mm
High Light:

dth drill tube

,

dth drill rods



Product Description



Down th hole drill pipes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability. Sollroc DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe.The high pressure air is delivered to DTH hammer by DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.



DTH drilling tool is a kind of drilling system which uses compressed air as motivation, makes drilling impact motivation parts down the hole, to control the piston reciprocating motion by the distribution device in the hammer, and then impacts the DTH bit in the front of the hammer to transit the impacting power to the bit. The DTH bit in the front of the hammer breaks the rock to drill hole.


Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 0

Diameter(mm)
Diameter(Inch)
Connection Thread
Length
76mm
3"
API 2 3/8"Reg
1m-6m
89mm
3 1/2"
API 2 3/8"Reg
1m-6m
102mm
4"
API 3 1/2" Reg
1m-6m
114mm
4 1/2"
API 3 1/2" Reg
1m-6m
127mm
5"
API 3 1/2" Reg
1m~10m
140mm
5 1/2"
API 3 1/2" Reg
1m~10m
152mm
6"
API 4 1/2" Reg
1m~10m





Features



1. Carefully selected seamless steel pipe and high quality alloy steel for joint tools.
2. Precisely friction welded to ensure straightness and concentrically.
3. Multiple precisely heat-treated tools joint.
4. Internally and externally upset drill rods are available.





Advantage



Applicable hard,very hard and medium soft rock formations. Reliable quality, long service life, rare abnormal breakage during service life. Good flushing effect to ensure high drilling rate.





Product application



At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.

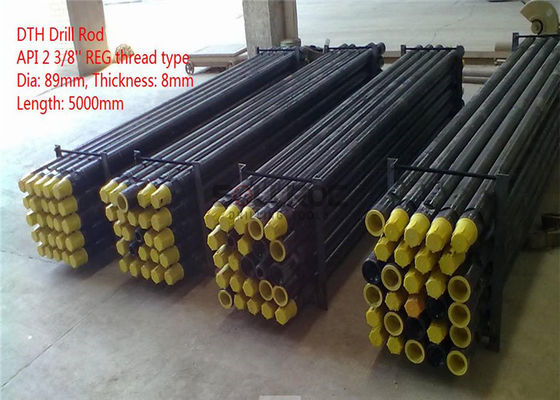

Detailed Pictures



Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 1Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 2

Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 3Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 4Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 5Reg And API 3 1/2"Reg Friction Welded DTH Drill Pipe / Down The Hole Drill Rod 6



Packaging and Shipping



Packaging: Plywood case+pallet, or as request.

Shipping: By air, by sea, by express, or as request.





Company Information



Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.



with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
