Product Details:
|
| Product Name: | 3 Wings Drag Bit | Material: | Alloy Steel |
|---|---|---|---|
| Diameter: | 2 3/4"-17 1/2" | Thread: | API REG, API Pin, N-Rod |
| High Light: | step drag bits,chevron drag bit |
||
Product description
Drag bit is used in soft to medium formation such as sand, clay, or some soft rock for water well drilling, mining,
geothermal, environmental and exploration drilling. When the DTH hammer or tricone bit lose their effectiveness and then
the drag bit is used, the cleaning of the hole is realized by the injection of air or water. They are not suitable in coarse gravel
or hard rock formations.
There are two forms of drag bits:
1. Step type:
- Step type for soft grounds, Step type bits are the most common type of drag bit used in the world today. They are primarily
designed for soft formation.
| Size | Thread | Approx.weight(lbs.) |
| 2 3/4" - 3 1/2" | N - Rod | 3 |
| 3 1/2" - 4 3/4" | 2 3/8" API REG | 4 - 6.7 |
| 4 7/8" - 5 1/8" | 2 3/8" API REG | 8.4- 8.7 |
| 5 1/4" - 5 1/2" | 2 3/8" API REG | 8.8 - 9.5 |
| 5 5/8" - 6" | 2 3/8" , 3 1/2" API Pin | 9.4 - 10.6 |
| 6 1/8" - 6 1/4" | 2 3/8" , 3 1/2" API Pin | 10.7 - 17 |
| 6 1/2"- 6 3/4" | 2 3/8" , 3 1/2" API Pin | 18 - 18.6 |
| 5 1/2" - 6 3/4" | 2 3/8" ,3 1/2" API Pin | 19 - 20.5 |
| 6 7/8" - 7 7/8" | 2 3/8" , 3 1/2" API Pin G | 21.2 - 22.7 |
| 8" - 9" | 3 1/2", 4 1/2" API Pin | 22.8 - 23.4 |
| 9 1/8" - 10 7/8" | 3 1/2", 4 1/2" API Pin | 23.6 - 31.3 |
| 7 7/8" - 8 7/8" | 3 1/2", 4 1/2" API Pin | 30 - 33.5 |
| 9" - 9 7/8" | 3 1/2", 4 1/2" API Pin G | 34.5 - 36 |
| 7 7/8" - 9 7/8" (4 wing) | 3 1/2", 4 1/2" API Pin | 25.6 - 28.2 |
| 7 7/8" - 10" (4 wing) | 3 1/2", 4 1/2" API Pin G | 44.5 - 50.7 |
| 10 5/8" -11" | 3 1/2" 4 1/2" API Pin | |
| 12" -17 1/2" | 6 5/8" API REG Pin |
2. Chevron type:
- Chevron type for medium hard grounds. Chevron bits are designed for medium formations and are used in areas that
contain a lot of rock and also in the oilfield for drilling out concrete casings and plugs. Chevron drill bits are used for drilling
more abrasive formations like soft sandstones and shales.
The Chevron style bit is more durable than the step drill bit but, because of cutting structure, will penetrate more slowly.
| Size | Thread | Approx. weight (lbs.) |
| 2 3/4" - 3 1/4" | N-Rod | 4 |
| 3 3/8" - 3 3/4" | 2 3/8" API Pin | 5 |
| 3 7/8" - 4 3/4" | 2 3/8" API Pin | 5.8 - 6.7 |
| 4 7/8" - 5 1/8" | 2 3/8" API Pin | 6.7 - 7.1 |
| 5 1/4" - 5 1/2" | 2 3/8" API Pin | 7.5 - 9.3 |
| 4 5/8" - 5" | 2 3/8", 3 1/2" API Pin | 6.8 - 7 |
| 6 1/2" - 6 3/4" | 2 3/8", 3 1/2" API Pin | 14.2 - 14.5 |
| 7" - 7 1/2" | 2 3/8", 3 1/2" API Pin | 18.8 - 19.4 |
| 7 5/8" - 8" | 3 1/2", 4 1/2" API Pin | 19.6 - 20.3 |
| 8 1/2"-11" | 3 1/2", 4 1/2" API Pin | 20.5 - 30 |

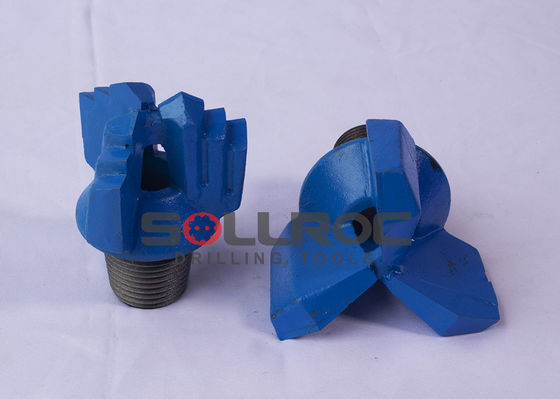

Detailed pictures
Package and shipping
Package: carton+plywood case, or as your special request.
Shipping: By sea, by air, by express, as your request.
