Product Details:
|
| Certification: | SGS | Brand: | Sollroc |
|---|---|---|---|
| Orgin Place: | HuNan,China(Mainland) | Color: | Black Or Requested |
| Delivery Time: | 18-22Days | MOQ: | 1 PC |
| Material: | Alloy Steel | Advantage: | Long Use Life |
| Product Type: | Reverse Circulation Hammer | Use: | Mining,Water Well Drilling |
| Name: | SRC547 RC Hammer | Package: | Plywood Case |
| High Light: | reverse circulation hammers,reverse circulation drilling |
||

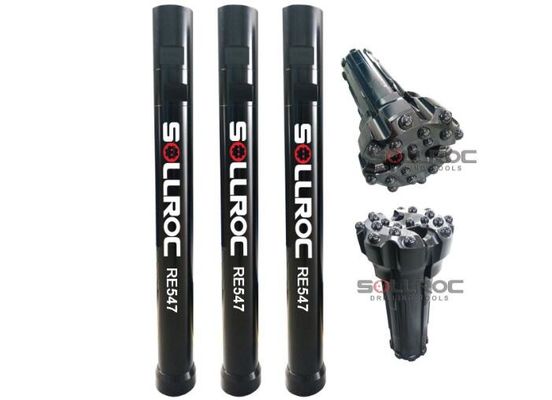

Long Life Use Time SRC547 Rc Drilling Hammers For Drilling Equipments
About Rc Drilling Tools
Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling.
RC samples are collected at the drill and sent directly to the assay lab. Unlike diamond drill core, which is generally logged, photographed, split for sample, assayed and warehoused, RC sampling requires much less handling resulting in faster assay turnaround with accompanying cost reductions. Larger volume RC samples often give more representative gold samples than split half core samples.
Features of SOLLROC RC hammer and bit:
-Spare parts are made of quality raw material with carburized treatment offer good wear resistance.The hammer achieve excellent wear resistance and high penetration rate
-Various selection for bit head shape,button shape and button configuration.It can completely satisfy the customization requirement and have adaptability to varies of conditions.
-Rc bit is interchangeable with well-known brand shank.The interchangeable shank design helps customers to optimized inventory.
Items Description:
| Solloc RC Hammers Specifications | ||||||||
| Hammer Size | Hammer | Bit Shank | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | SRC531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.0-3.0Mpa |
| 3" | SRC035 | SRC035 | 84-105 | 85 | 1075 | 35 | 3" Remet | 1.0-3.0Mpa |
| 4 1/2" | SRC004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | SRC540 | SRC540 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC040 | SRC040 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC543 | SRC543 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | SRC545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC547 | SRC547 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | SRC040 | SRC40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC052 | SRC052 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC052 | SRC052R | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | SRC054 | SRC054 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| Metzke, Remet thread is available! | ||||||||
| Any special type shank of RC Hammer will be available by requests. | ||||||||
Shank can be available:
1) Non-Blocking:Our RC hammers are proved to ensure extremely low rate of blocking during it works.
2) High Efficiency:The well drilling equipment carries with larger power of impact frequency and torque, thus ensuring faster penetration. Compared with others, the efficiency can be improved 10%.
Our Service:
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .
(1)Select equipment model.
(2)Design and manufacture products according to customer‘s needs;
(3)Train technical personnel for clients .
2.Services during the sale:
(1)Pre-check and accept products ahead of delivery .
(2)Help clients to draft solving plans .
3.After-sale services:
Provide considerate services to minimize clients' worries.
(1)Complete After-sales service,professional engineers available to service machinery at home or oversea.
(2)24 hours technical support by e-mail.
(3)Other essential technical services.
Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Transportation:
By air, By Express or By sea according to your requests
