Product Details:
|
| Brand: | Sollroc | Orgin Place: | HuNan,China(Mainland) |
|---|---|---|---|
| Certification: | SGS | Color: | Black Or Requested |
| Delivery Time: | 18-22Days | MOQ: | 1 Pc |
| Material: | Alloy Steel | Advantage: | Retrievable And Stable |
| Product Type: | ODEX Casing System | Use: | Mining,Water Well Drilling |
| Name: | 4 Inch ODEX115 Eccentric System | Package: | Plywood Case |
| High Light: | odex casing system,geotechnical drilling tools |
||
Geothermal Well Blasting And Drilling Tools ODEX115 Eccentric Overburden System
Product Specification:
It can be used in all ground conditions and drilling applications as: Foundation construction, Piling construction, Water Well and Geothermal, Tunneling and Horizontal drilling.
1. Eccentric Casing System Features:
Spare Parts surface with hardening treatment
With longer operating life and excellent wear resistance
2. Structual Optimization
Reinforce the structural strength,easy to operate,realiable performance
3. Superior Performance
Smoothly in high efficiency and hole Drilling
Description:
The hard alloy steel bit used in drilling in hard macadam is not only beneficial to rock breaking, but also has a longer life than the diamond bit.
The drilling speed is low, the centrifugal force is small, and the impact of the drilling tool on the hole wall is small. Moreover, this drilling method uses high frequency impact on the hole bottom to reduce the influence of hole deviation on the broken or inclined formation, thus improving the verticality of the drilling hole and reducing the rock collapse of the hole wall.
Technical parameters table of standard eccentric casing system
| Product Code | Outer Dia.(A)mm | Inner Dia.(B)mm | The Max Wall Thickness | Reamed Dia.(C)mm | Inner Dia. Of Casing Shoe(D)mm | Inner dia. Of Casing Shoe That Pilot Bit Can Pass Through | Type of Hammer Recommended | Hammer Type(E) | Drill pipe mm |
| HEC140-HD45-115 | 140mm | 128mm | 6 | 152mm | 117mm | 115mm | HD45 | DHD3404 QL40 | 76mm |

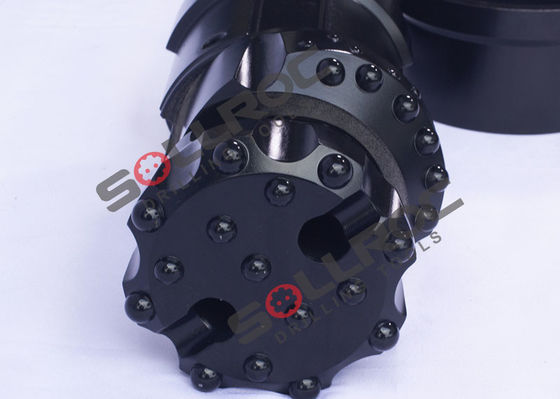

Photos:
Our Service:
1.Pre-sale service:
Act as a good adviser and assistant of clients enable them to get rich and generous returns on their investments .
(1)Select equipment model.
(2)Design and manufacture products according to customer‘s needs;
(3)Train technical personnel for clients .
2.Services during the sale:
(1)Pre-check and accept products ahead of delivery .
(2)Help clients to draft solving plans .
3.After-sale services:
Provide considerate services to minimize clients' worries.
(1)Complete After-sales service,professional engineers available to service machinery at home or oversea.
(2)24 hours technical support by e-mail.
(3)Other essential technical services.
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
