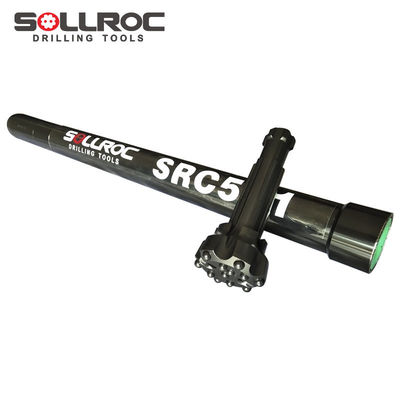

3'' OD81mm SRC531 Reverse Circulation Hammer

3'' OD81mm SRC531 Reverse Circulation Hammer
3'' OD81mm SRC531 Reverse Circulation Hammer 3'' OD81mm SRC531 Reverse Circulation Hammer 3'' OD81mm SRC531 Reverse Circulation Hammer

Large Image :  3'' OD81mm SRC531 Reverse Circulation Hammer

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 3'' SRC531 RC Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

3'' OD81mm SRC531 Reverse Circulation Hammer

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531
High Light:

SRC531 Reverse Circulation Hammer

,

OD81mm Reverse Circulation Hammer

,

length 1069mm 3'' RC Hammer

3'' RC Hammer OD81mm SRC531 Hammer With Sample Tube & Remet Thread For RC Exploration Drilling



Product Introduce:

Reverse circulation hammers and bits are used in exploration and grade control applications to obtain an accurate sample with no risk of contamination. Sollroc offers a range of reverse circulation hammers and drill bits that provide outstanding performance coupled with reliability and simplicity.


Specification:

SOLLROC RC hammer model SRC531:

Overall Length (less bit)

1069mm

Weight (less bit)

29kg

External Diameter

81mm

Fit bit shank

SRC531

Hole range

84-105mm                     (3 15/16''-4 1/8'')

Top sub thread

3" Remet

Working presure

15-35 bar

Impact rate at 2.4 Mpa

40Hz



Bit SRC531 specification:Data reference by drop center face bit

Diameter No.*Button Dia(mm) Recommended Shroud dia(mm) Approx Weight (kg)
mm inch Gauge button Center button Center
84 3 5/16'' 6*13mm 4*12mm 2*12mm 82 3.8
86 3 3 /8'' 6*13mm 4*12mm 2*12mm 84 3.9
89 3 1/2'' 6*13mm 4*12mm 2*12mm 87 4
92 3 5/8'' 6*14mm 4*12mm 2*12mm 90 4.1
95 3 3/4'' 6*14mm 4*12mm 2*12mm 93 4.2
100 3 15/16'' 6*14mm 4*12mm 2*12mm 98 4.3
105 4 1/8'' 6*14mm 4*12mm 2*12mm 103 4.5





3'' OD81mm SRC531 Reverse Circulation Hammer 0



3'' OD81mm SRC531 Reverse Circulation Hammer 1



Adavantages:

1.Based on previous experience of ordinary hammer, combined with feature of reverse circulation hammer, optimized internal structure and indeal energy transfer, thus ensuring the series of hammer drilling with fast, smooth and continuous sampling.
2.The internal structure is very simple with components of high rigidity,thus ensuring longlife and easy maintenance of the hammer.
3.The collection tube adopts an integrative design and can be replaced without disassembling the hammer with carburizing treatment , it has good abrasive resistance.


Detailed Photo:

3'' OD81mm SRC531 Reverse Circulation Hammer 23'' OD81mm SRC531 Reverse Circulation Hammer 33'' OD81mm SRC531 Reverse Circulation Hammer 4



About us:

SOLLROC has more than 10 years of experience,each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard. We are dedicated to offering our customers only premium quality products and services to enable them to achieve the highest possible productivity for their business and projects.



Delivery Way:

By Air, By express or By Sea
