305mm Chevron Step Drag Bits For Clay Sand Drilling

305mm Chevron Step Drag Bits For Clay Sand Drilling
305mm Chevron Step Drag Bits For Clay Sand Drilling 305mm Chevron Step Drag Bits For Clay Sand Drilling 305mm Chevron Step Drag Bits For Clay Sand Drilling

Large Image :  305mm Chevron Step Drag Bits For Clay Sand Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 64mm -305mm Drag Bits
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: about 15 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000 pieces per month

305mm Chevron Step Drag Bits For Clay Sand Drilling

Description
Size: 64-305mm Color: Blue Or You Wanted
Application: Soft Or Medium Formation Advatage: High Performance And Long Service Life
Type: Drag Bits Material: Tungsten Carbide
Advantage: Good Quality With Competitive Price
High Light:

Chevron Step Drag Bits

,

305mm Step Drag Bits

,

64mm chevron drag bits

High Quality 64mm-305mm Chevron Step Drilling Drag Bit For Clay Sand Drilling



Product Introduce

The Chevron style drag bit does not penetrate as fast as the step type, however it will cut harder formations such as medium soft to medium hard sand rock and shale.



Advantages

1. Reasonable price

2. CNC threaded machining for proper installation &use;
3. Forgings are milled to better seat the carbide inserts.
4. Select tungsten carbide inserts 5.5mm thick are standard.
5. Relief is hand ground behind carbide inserts for maximum performance.
6. Usage: Mining, Exploration, Environmental, Water well, Geo Exchange, etc.
7.Ultra high strength brazing to ensure bit toughness



Techinical parameter

Type Dimension Thread connection
inch mm
3 wings step type 2 - 17 1/2 51-445 2 3/8'' - 6 5/8'' API REG
3 wings chevron type 2 1/2 - 8 64-203 2 3/8'' - 4 1/2'' API REG
4 wings step type 7 7/8 - 17 1/2 200-445 3 1/2'' - 6 5/8'' API REG
4 wings chevron type 2 5/8 - 12 67 - 305 2 3/8'' - 4 1/2'' API REG

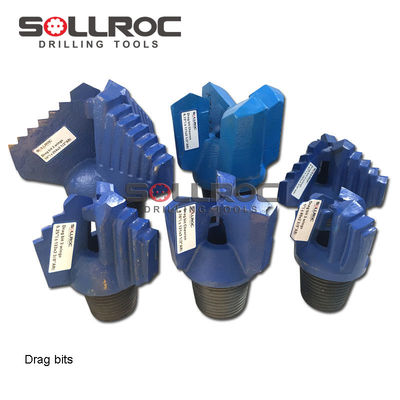

Detail Photos:

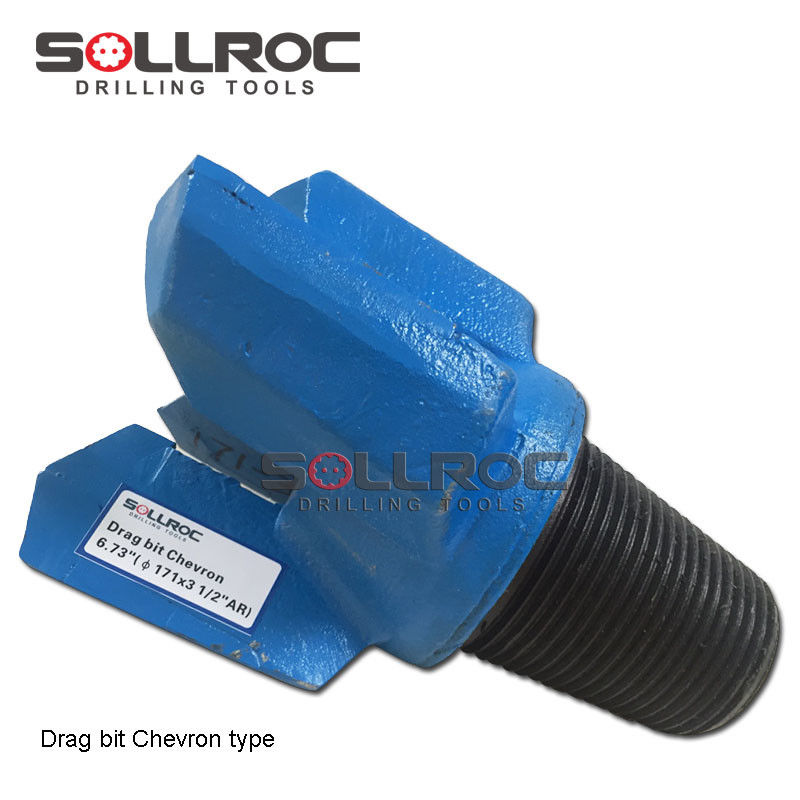

305mm Chevron Step Drag Bits For Clay Sand Drilling 0

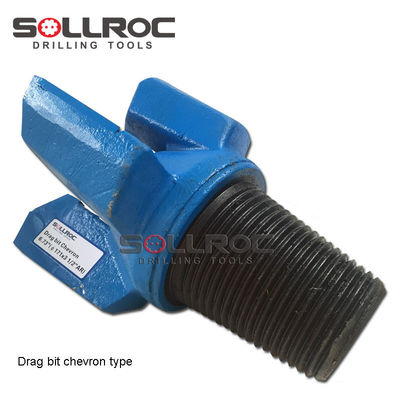

305mm Chevron Step Drag Bits For Clay Sand Drilling 1
