Product Details:
|
| Size: | 3''-12'' | Color: | Blue Or You Wanted |
|---|---|---|---|
| Application: | Soft Or Medium Formation | Advatage: | High Performance And Long Service Life |
| Type: | Drag Bits | Material: | Tungsten Carbide |
| Advantage: | Good Quality With Competitive Price | ||
| High Light: | Tungsten Carbide 3 Wing Bit,SGS Step Drag Bits,API REG Thread Step Drag Bits |
||

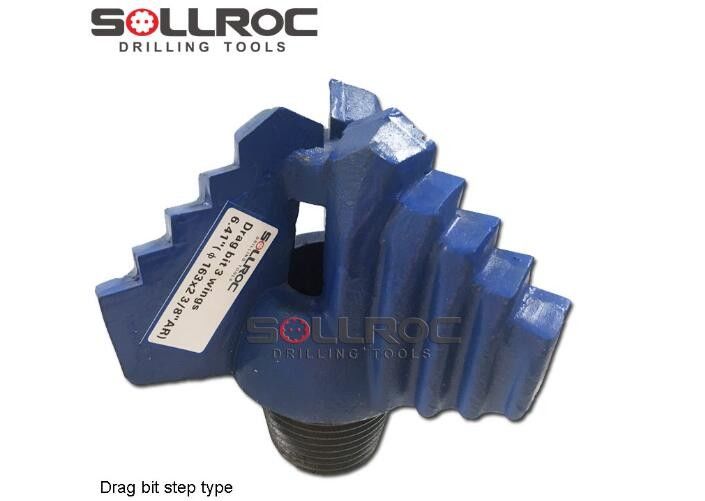

Step-Type Drag Bits Of Three-Wings And Four-Wings For Water Well Drilling
Product Introduce
Drag bits can be either solid or welded construction. Solid, or one piece construction, is the most durable and recommended for all oil field and natural gas applications where error cannot be tolerated. Because of the large flow course, drag bit is suitable either for air or fluid drilling and does not detract from the bit's strength.
Adavantages
1.Drag bits are welded solid at the nose for durability
2.Forgings are milled to better seat the carbide inserts
3.Relief is hand ground behind carbide inserts for maximum performance
Techinical parameter
| Type | Dimension | Thread connection | |
| inch | mm | ||
| 3 wings step type | 2 - 17 1/2 | 51-445 | 2 3/8'' - 6 5/8'' API REG |
| 3 wings chevron type | 2 1/2 - 8 | 64-203 | 2 3/8'' - 4 1/2'' API REG |
| 4 wings step type | 7 7/8 - 17 1/2 | 200-445 | 3 1/2'' - 6 5/8'' API REG |
| 4 wings chevron type | 2 5/8 - 12 | 67 - 305 | 2 3/8'' - 4 1/2'' API REG |
Application
The step type bits are most commonly used in the field. They are primarily designed for soft to medium hard rock formation. SOLLROC offers robust heavy duty drag bits suitable for drilling holes ranging from 2'' to 17 1/2'', which are available in 3 wings and 4 wings design.

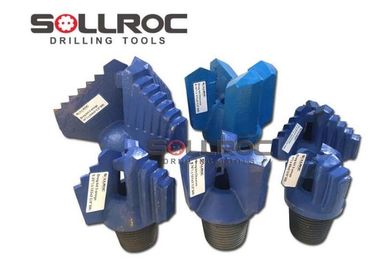

Detail Photos:
About us
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers' needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers' needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
Package:
Wooden cases or your required
Delivery Time
Generally need 15-20 days
Transport Way
By air, By Sea or By Express
Contact Person: Ms. Ling Bo
Tel: 86-13077353340
Fax: 86-731-85551635
