|Material:||Carburized Steel||Color:||Red Or You Wanted|
|Application:||Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling||Air Pressure:||High Air Pressure|
|Advatage:||High Performance And Long Service Life||Type:||Top Hammer Button Bits|
|Use:||Water Well Drilling,industrial Scale Oil Extraction||Formation:||Soft Formation,medium Hard And Hard Formation|
Retrac Threaded Button Bits,
T45 Threaded Button Bits,
Tungsten Carbide Retrac Button Bit

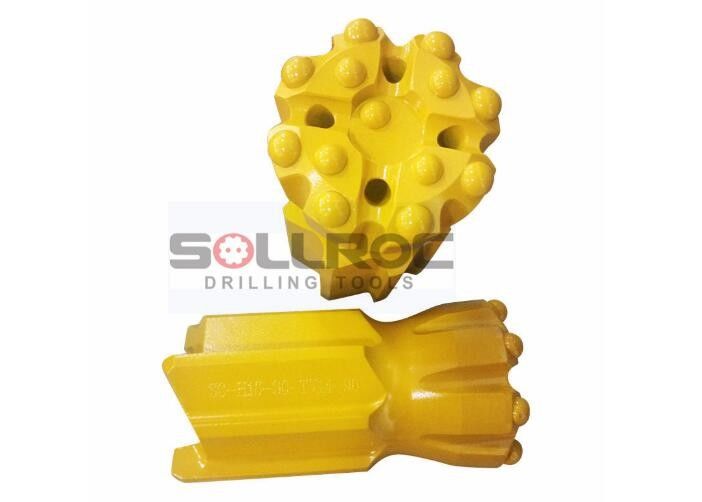

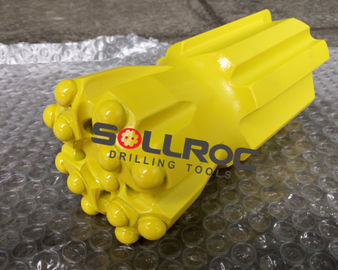

T45-89 Tungsten Carbide Retrac Thread Button Rock Bit For Tophammer Drilling
The thread button bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.
Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the users.
According to the tungsten carbide insert, tapered button bits can be divided into the types of hemispherical button, conical button and parabolic button, etc.
Button bits with hemispherical button is for high bearing capacity and abrasive resistance while conical button and parabolic button are for high drilling speed and low abrasive resistance.
1. These threaded button bits can meet different drilling requirements in all rock formations. We can offer special designs according to customer's requirements for specific work situation.
2.The button bits can transmit intensive impact energy into the rock with the least loss of energy.
3.Select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear,thus the service life of bits will be increased.
4.long service life
Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68b
Button bit face design: Flat face, drop centre,
Normal and Retrac, Sprial retract body.
Tungsten carbide (Buttons): Spherical, ballistic and Conical. (Threaded R32, R38, T38, T45, T51, bit diameter: 43mm-152mm);
Main button bits diameters:
R32-45mm, R32-51mm, R32-64mm, R32-76mm, R32-89mm
T38-64mm, T38-76mm, T38-89, T38-102mm,
T45-76mm, T45-89mm, T45-102mm,
T51-89mm, T51-102mm, T51-127mm
ST58-89mm, ST58-102mm, ST58-115mm, ST58-127mm
GT60-102mm, GT60-115mm, GT60-127mm, GT60-152mm
ST68-115mm, ST68-127mm, ST68-140mm, ST68-152mm
Other sizes and models are available according to your requests.
They’re built to take on any rock, from hard to soft, and from abrasive to non-abrasive. These bits last much longer. They give the drillers more meters before the first regrind, and many more meters between the regrinds.
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
