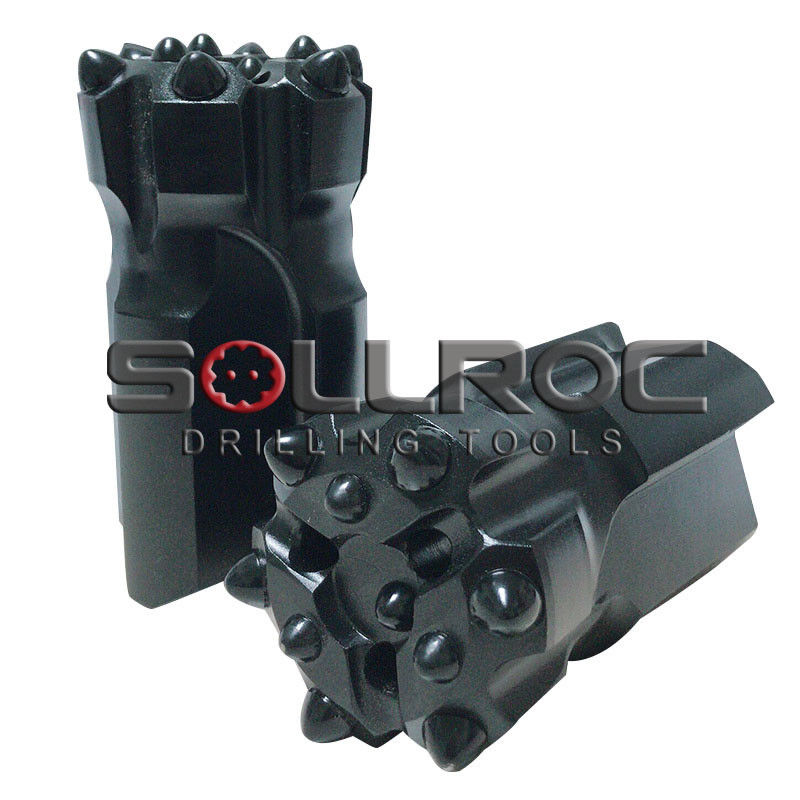

T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits

T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits
T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits

Large Image :  T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: T38, T45, T51
Payment & Shipping Terms:
Minimum Order Quantity: 10 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: about 22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000 pieces per month

T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits

Description
Material: Carburized Steel Color: Red Or You Wanted
Application: Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling Air Pressure: High Air Pressure
Advatage: High Performance And Long Service Life Type: Top Hammer Button Bits
Use: Water Well Drilling,industrial Scale Oil Extraction Formation: Soft Formation,medium Hard And Hard Formation
Quality: Best
High Light:

Top Hammer Threaded Button Bits

,

T51 Threaded Button Bits

,

T45 Top Hammer Drill Bits

T38/T45/T51 Tophammer Threaded Button Bits With Customized Color For Drilling



Product Introduction:

SOLLROC stocks a comprehensive supply of Tophammer Drilling Tools. Whether you require bits, coupling sleeves, shank adaptors or rods, we have exactly what you need when you need it.

The thread button bits are widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.



Advantages:

1.Best quality alloy steel

2.CNC Processed

3.Strengthened transition area

4.Carbide buttons with high strength and weat-resistance.



Prbduct Specifications:

Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68b

Button bit face design: Flat face, drop centre,
Normal and Retrac, Sprial retract body.

Tungsten carbide (Buttons): Spherical, ballistic and Conical. (Threaded R32, R38, T38, T45, T51, bit diameter: 43mm-152mm);






Thread Type dia tip size(mm) flushing holes weight (kg)
mm gauge front side front
T38 57 5*11 3*10 1 1 1.6
64 5*12 3*11 1 1 1.6
76 5*14 3*12 1 2 2.4
T45 70 6*11 4*10 0 2 2.4
76 6*13 4*10 0 2 2.6
89 8*12 5*12 2 2 4.5
102 8*13 6*12 2 2 5
115 8*14 6*13 2 2 6.8
T51 89 8*12 5*12 2 2 4.9
102 8*13 6*12 2 2 5.8
115 8*14 6*13 2 2 6.8
127 8*14 6*14 2 2 7.5






Main button bits diameters:



R32-45mm, R32-51mm, R32-64mm, R32-76mm, R32-89mm

T38-64mm, T38-76mm, T38-89, T38-102mm,

T45-76mm, T45-89mm, T45-102mm,

T51-89mm, T51-102mm, T51-127mm
ST58-89mm, ST58-102mm, ST58-115mm, ST58-127mm
GT60-102mm, GT60-115mm, GT60-127mm, GT60-152mm
ST68-115mm, ST68-127mm, ST68-140mm, ST68-152mm



Other sizes and models are available according to your requests.



T38 T45 T51 Carburized Steel Top Hammer Threaded Button Bits 0



Feature

They’re built to take on any rock, from hard to soft, and from abrasive to non-abrasive. These bits last much longer. They give the drillers more meters before the first regrind, and many more meters between the regrinds.



About us

We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.



Delivery Time

Generally need 15-25 days



Transport Way

By air, By Sea or By Express
