Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | DTH Drill Pipe |
| Use: | Drilling | ||
| High Light: | API Reg Thread DTH Drill Rods,114mm OD DTH Drill Rods,102mm OD DTH Drill Pipe |
||

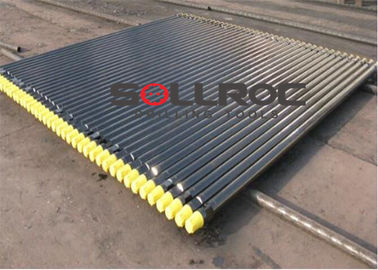

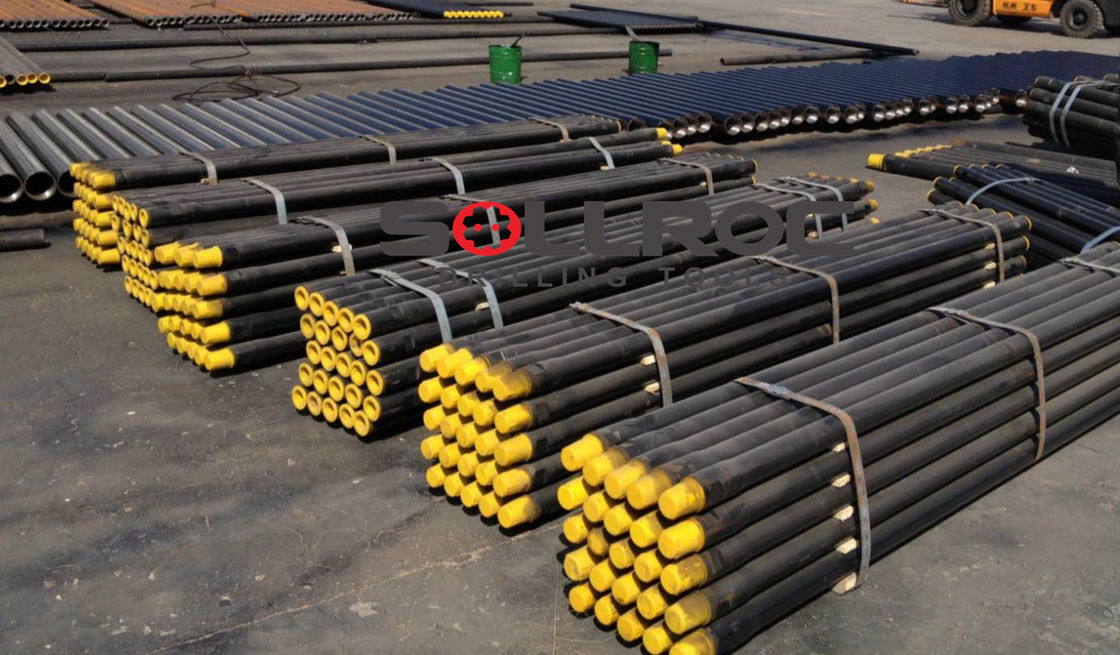

Different Length API Reg Beco Thread DTH Drill Rod/Pipe For Water Well Drilling
Product Introduce
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 76mm,89mm,95mm,102mm,114mm 127mm,140mm,159mm and etc.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from1000mmto6000mmlength of pipe are available.
Specification
| Outer diameter | Thread | Wall thickness | Length | Wrench flat | Weight |
| mm | mm | mm | mm | Approx Kg | |
| 76 | 2-3/8 API REG | 5.5 | 1000 | 57 | 17 |
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
| 1000 | 65 | 17 | |||
| 1500 | 22 | ||||
| 2000 | 26 | ||||
| 3000 | 35 | ||||
6.5 |
3000 | 46 | |||
| 4500 | 56 | ||||
| 6000 | 73 | ||||
| 89 | 2-3/8 API REG | 5.5 | 1000 | 65 | 20 |
| 1500 | 25 | ||||
| 2000 | 30 | ||||
| 3000 | 40 | ||||
| 6.5 | 1000 | 21 | |||
| 1500 | 26 | ||||
| 2000 | 32 | ||||
| 3000 | 45 | ||||
| 4500 | 65 | ||||
| 6000 | 84 | ||||
| 102 | 2-3/8 API REG | 6.5 | 1000 | 75 | 25 |
| 1500 | 33 | ||||
| 2000 | 40 | ||||
| 3000 | 55 | ||||
| 4500 | 78 | ||||
| 6000 | 100 | ||||
| 2-7/8 API REG | 1000 | 83 | 25 | ||
| 1500 | 33 | ||||
| 2000 | 40 | ||||
| 3000 | 55 | ||||
| 4500 | 78 | ||||
| 6000 | 100 | ||||
| 114 | 3-1/2 API REG | 6.5 | 1000 | 95 | 31 |
| 1500 | 40 | ||||
| 2000 | 49 | ||||
| 3000 | 66 | ||||
| 4500 | 86 | ||||
| 6000 | 110 |
Feature
1. High-precision CNC lathe processing to ensure the tightness of the thread connection;
2. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
3. The body of the drill rod and the joint are welded by a friction welding process, and then the intermediate frequency return is used to remove the welding stress to ensure the welding strength and the straightness of the finished drill rod.
4. The drill rod body and joint are made of European and American high-quality raw materials to ensure the superiority of normal construction under harsh conditions.
We can also supply DTH drill pipe from diameter 76mm to 140mm.
About us
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
