Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer

Certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
Customer Reviews
I received my hammers and bits, they looks amazing,.they are performing well after we use them, thanks very much.

—— John Lewis

I would recommend this company product 110% as in the past I have had a 100% good result from them.

—— Vesa Vaatanen

I'm Online Chat Now

Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer

Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer
Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer
Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer

Large Image :  Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC040 RC Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC040
High Light:

SRC040 Shank Reverse Circulation Hammer

,

Metzke Connection Thread Reverse Circulation Hammer

,

Metzke Connection Thread RC Hammer

High Performance SRC040 Shank RC Hammer With Remet Metzke Thread For Ore Sampling



Product Introduce:

Reverse Circulation drilling, or RC drilling, is a method of drilling which uses dual wall drill rods that consist of an outer drill rod with an inner tube. These hollow inner tubes allow the drill cuttings to be transported back to the surface in a continuous, steady flow.



Adavantages:

1.Manufactured using premium hardened metals for long life;
2.Maximum material recovery, up to 98%;
3.No cross contamination of samples;
4.Handles injection of water, foam, oil, and polymers without performance loss;
5.Delivers maximum drilling under water.



Specification:

SOLLROC RC SRC040 hammer technical date:

Length (less bit) 1362mm
Weight (less bit) 80.5kg
External diamater φ120.5mm
Bit shank SRC040
Hole range φ124-φ142
Connection thread 3.5"-4.5" Remet
 3.5"-4.5" Metzke
Working pressure 1.5Mpa-3.5Mpa



Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer 0

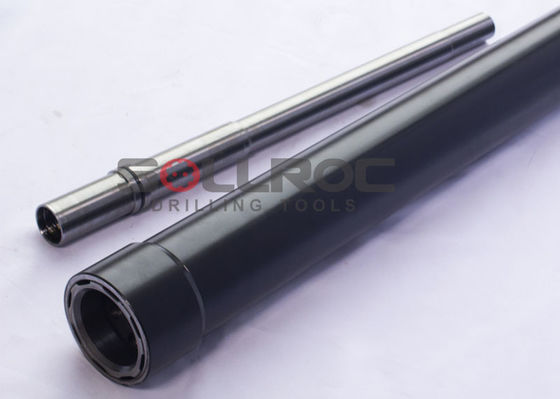

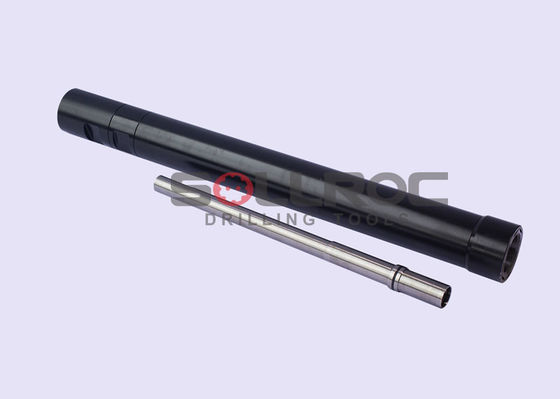

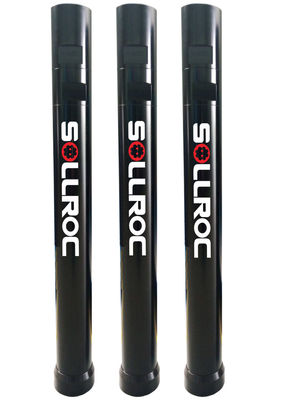

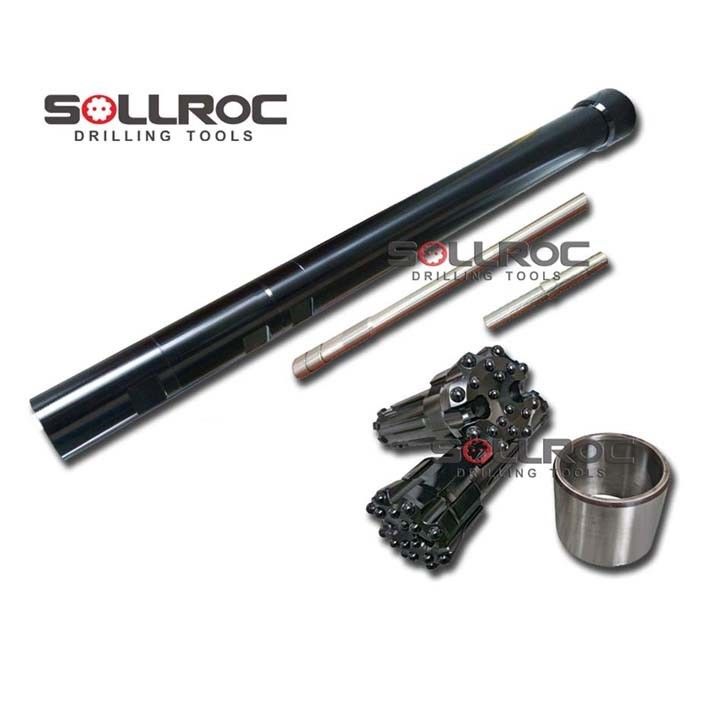

Detailed Photo:

Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer 1Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer 2Metzke Connection Thread SRC040 Shank Reverse Circulation Hammer 3



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
