Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | DTH Drill Pipe |
| Use: | Drilling | ||
| High Light: | 2 3/8'' API REG DTH Drill Pipe,Borehole Drilling DTH Drill Pipe,Diameter 76mm DTH Drill Tube |
||

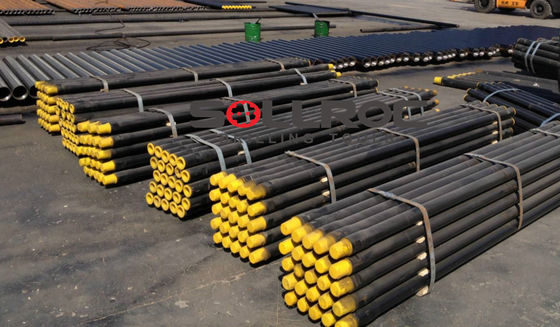

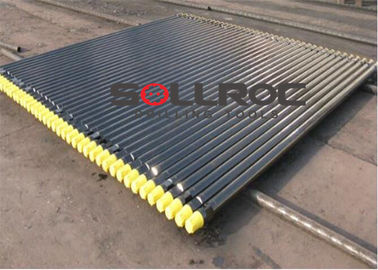

76mm DTH Drill Pipe With 2 3/8'' API REG In Yellow Use For Borehole Drilling
Product Introduce
Drill pipes that are used in applications such as DTH/ DTHR/ DR basically comprise of a steel pipe with a pin at one end and a box on the other. The job of the drill pipe is to transmit rotational torque and thrust from the drill rig rotary head to down hole drilling tools.
According to different application, different diameters of drill tubes are needed, basically, smaller DTH hammers need smaller DTH drill tubes, vice versa. Usually we are offering 50mm, 60mm, 76mm, 89mm, 95mm, 102mm, 114mm, 127mm, 140mm, 159mm.
Usually the threads are standard API connections, like 2 3/8" API REG thread, 3 1/2" API REG thread or API IF thread, etc. According to customers request, from 1000mm to 6000mm length of pipe are available.
Feature
1. Reliable working performance
2. High-precision CNC lathe processing to ensure the tightness of the thread connection;
3. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
Specification
| pipe diameter(mm) | pipe length(mm) | wall thickness(mm) | connection thread | |
| inch | mm | |||
| 3 | 76 | 1000-9000 | 6.3; 8 |
API 2 3/8” REG 2 3/8” IF 2 7/8” IF 3 1/2” IF 3 1/2” BECO 4 1/2” BECO |
| 3 1/2 | 89 | 1000-9600 | 6.3; 8 | |
| 4 | 102 | 1000-9000 | 6.3; 8 | |
| 4 1/2 | 114 | 1500-9140 | 8; 10 | |
| 5 | 127 | 1500-9500 | 10; 12 | |
| 5 1/2 | 140 | 1500-9500 | 14; 19 | |
We can also supply DTH drill pipe from diameter 76mm to 140mm.
About us
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
