Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | DTH Drill Pipe |
| Use: | Drilling | ||
| High Light: | Friction Welding DTH Drill Rods,Water Well Drilling DTH Drill Rods,API Reg Thread DTH Drill Pipe |
||

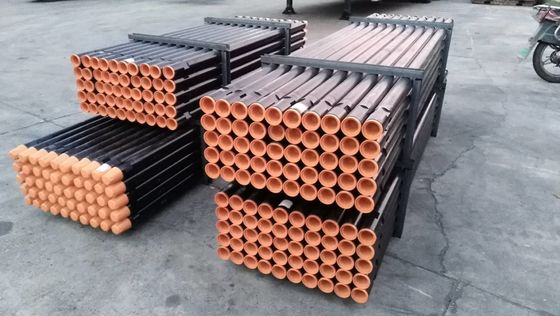

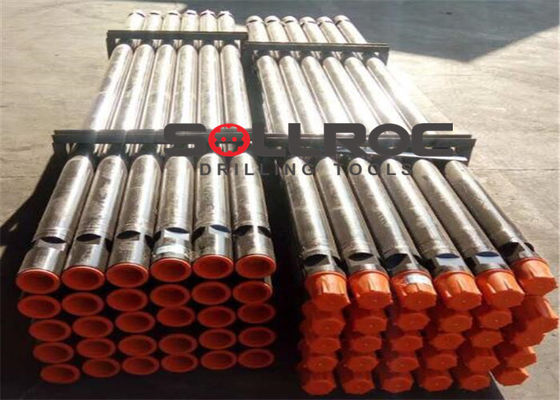

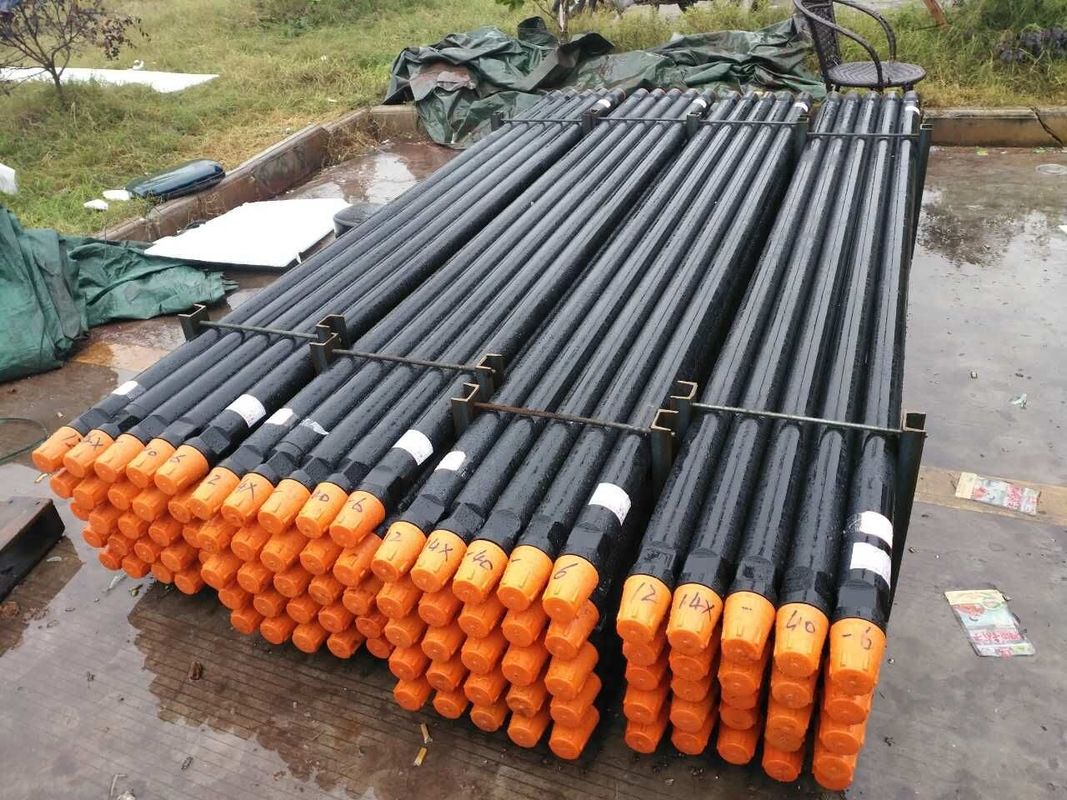

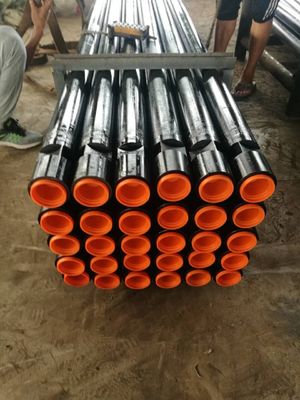

Friction Welding DTH Drill Rod With Thread API Reg For Water Well Drilling
Product Introduce
SOLLROC Down the hole drill pipes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability. Our DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe.The high pressure air is delivered to DTH hammer by DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.
Feature
1. In-house heat treatment ensures optimum surface hardness and case depth
2. R780 Steel -high standard
3. Long Life Thread Connection
4. Reliable and wear-resistant
Specification
| pipe diameter(mm) | pipe length(mm) | wall thickness(mm) | connection thread | |
| inch | mm | |||
| 3 | 76 | 1000-9000 | 6.3; 8 |
API 2 3/8” REG 2 3/8” IF 2 7/8” IF 3 1/2” IF 3 1/2” BECO 4 1/2” BECO |
| 3 1/2 | 89 | 1000-9600 | 6.3; 8 | |
| 4 | 102 | 1000-9000 | 6.3; 8 | |
| 4 1/2 | 114 | 1500-9140 | 8; 10 | |
| 5 | 127 | 1500-9500 | 10; 12 | |
| 5 1/2 | 140 | 1500-9500 | 14; 19 | |
We can also supply DTH drill pipe from diameter 76mm to 140mm.
About us
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
