Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | SRC004 | ||
| High Light: | SRC004 Remet Thread RC Hammer,Geological Exploration Metzke Thread RC Hammer,SRC004 Metzke Thread Reverse Circulation Hammer |
||
SRC004 Remet or Metzke Thread RC Drilling Hammer for Geological Exploration
Product Introduce:
Reverse Circulation drilling, or RC drilling, uses rods with inner and outer tubes, the drill cuttings are returned to surface inside the rods. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 |
SPR40 (SRC040) |
124-142 | 120.5 | 1362 | 80.5 |
3.5" / 4.5"Remet 3.5" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-P52/P52R |
SPR52/ SPR52R |
126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R |
SPR54 (SRC054) |
135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
RC bits shank SRC004
| Diameter |
No x Button diameter mm |
Button angle | Flushing holes |
Shroud Dia mm |
Weight (kg) |
Part No. | ||
| mm | inch | Gauge Button | Front Button | |||||
| 114 | 4 1/2 | 8 x 14mm | 8 x 13mm | 35 | 2 | 112 | 11.8 | RC4-E004-114 |
| 118 | 4 5/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 116 | 12.0 | RC4-E004-118 |
| 121 | 4 3/4 | 8 x 14mm | 8 x 13mm | 35 | 2 | 119 | 12.4 | RC4-E004-121 |
| 127 | 5 | 8 x 14mm | 8 x 13mm | 35 | 2 | 125 | 12.8 | RC4-E004-127 |
Adavantages:
1.Achieves greater penetration in hard rock than air core drilling, thanks to the percussive force and the strength of the drill bit.
2.Provides greater sample accuracy, and cuttings are easy to catalogue. The collected samples have an exact location and depth where they were acquired, making it easier to more precisely locate mineral deposits.
3.Ideal for harsh environments. RC drilling uses approximately 40% less water than diamond drilling, making it a better option for remote area drilling.

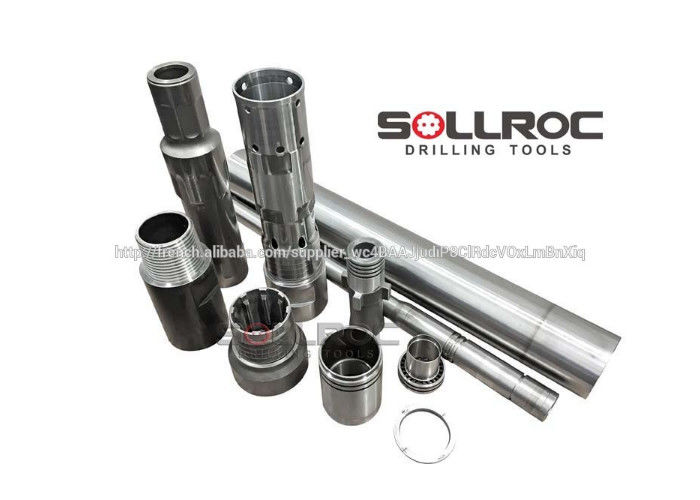

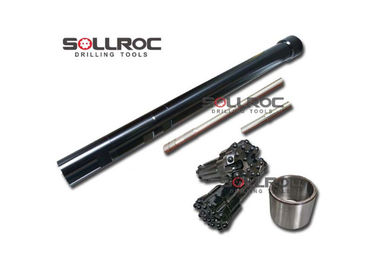

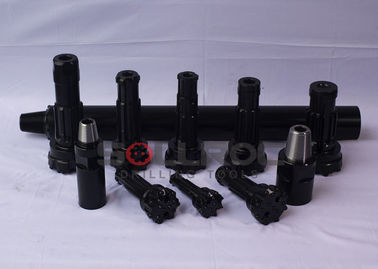

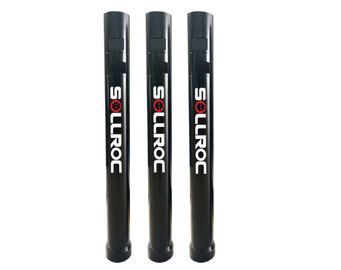

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
