Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | 3''-5.5'' | ||
| High Light: | SRC004 Shank RC Hammer,SRC004 Shank Reverse Circulation Hammer,4'' Remet Thread Reverse Circulation Hammer |
||
4'' RC Hammer with 4'' Remet Thread Shank Src004 for Reverse Circulation Drilling
Product Introduce:
Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling.
Adavantages:
1. No contamination
2. Dry sample
3. Higher sample Recovery
| Length(Without bit) | Weight(Without bit) | External diameter | Bit Shank | Hole range | Connection thread | ||||
| 1252mm | 52kg | 107mm | SRC004 | 111-127 | 3.5''/4'' Remet 4'' Metzke | ||||
| Working Pressure | Impact rate at 2.4Mpa | Recommended rotation speed | Air consumption | ||||||
| 1.5-3.5Mpa | 30HZ | 25-40r/min | 1.7Mpa | 2.4Mpa | 3.0Mpa | ||||
| 8m3/min | 12m3/min | 16m3/min | |||||||
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

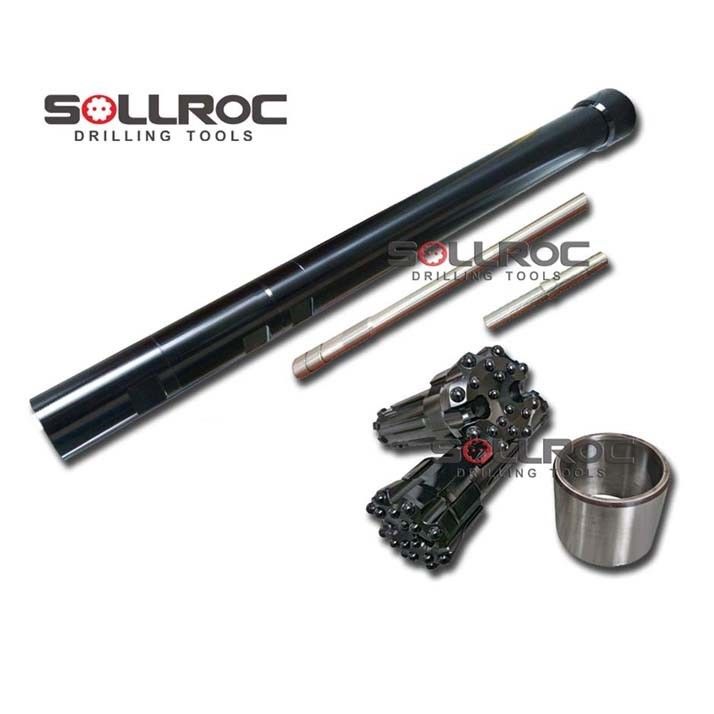

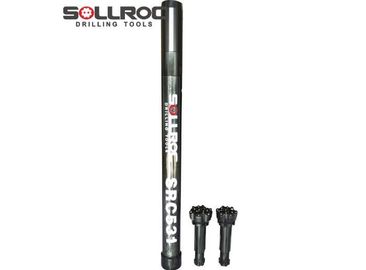

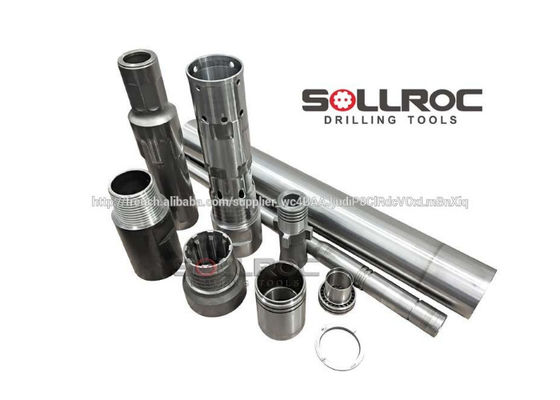

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
