Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | DTH Drill Pipe |
| Use: | Drilling | ||
| High Light: | DZ40 Steel DTH Drill Pipe,1.5m DTH Drill Pipe,76mm DTH Water Well Drill Rods |
||
DZ40 Steel Material 76mm*1.5m Black DTH Drill Pipe For Water Well Drilling
Product Introduce
Drill pipe are widely used in mining,geological exploring and all kinds of drilling(water,oil,gas,etc) projects.we make all kinds of standards and non-standard drill pipes for our customers. Our drill pipes including steel drill pipe,mining drill pipe,water well drill pipe,oil well drill pipe,API drill pipe,DTH drill rod,wireline drill rod,etc.
Specification
| pipe diameter(mm) | pipe length(mm) | wall thickness(mm) | connection thread | |
| inch | mm | |||
| 3 | 76 | 1000-6000 | 6.3; 8 |
API 2 3/8” REG 2 3/8” IF 2 7/8” IF 3 1/2” IF 3 1/2” BECO 4 1/2” BECO |
| 3 1/2 | 89 | 1000-6000 | 6.3; 8 | |
| 4 | 102 | 1000-6000 | 6.3; 8 | |
| 4 1/2 | 114 | 1500-9140 | 8; 10 | |
| 5 | 127 | 1500-9500 | 10; 12 | |
| 5 1/2 | 140 | 1500-9500 | 14; 19 | |
Feature
1. Precisely friction welded to ensure straightness and concentrically;
2. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
3. The body of the drill rod and the joint are welded by a friction welding process, and then the intermediate frequency return is used to remove the welding stress to ensure the welding strength and the straightness of the finished drill rod.
4. The drill rod body and joint are made of European and American high-quality raw materials to ensure the superiority of normal construction under harsh conditions.
We can also supply DTH drill pipe from diameter 76mm to 140mm.

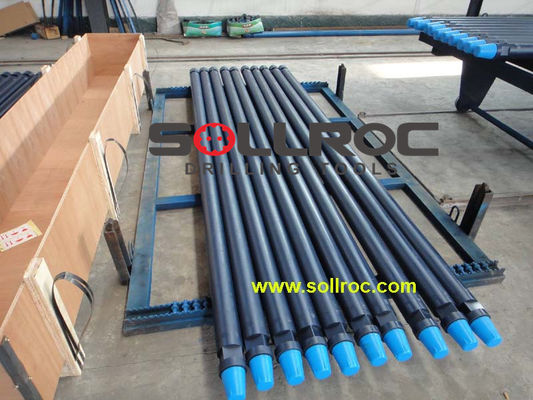

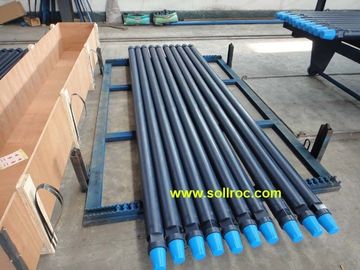

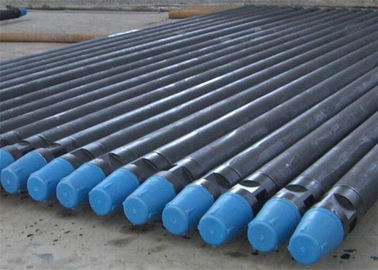

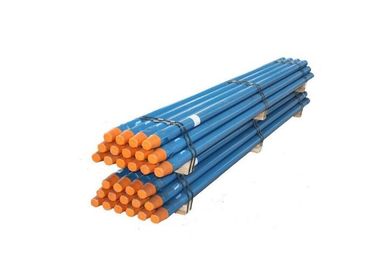

Detailed photo
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
