Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Water Well Drilling,Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | DTH Drill Pipe |
| Use: | Drilling | ||
| High Light: | DZ40 Steel Drill Rod,API Thread Drill Rod,Carburized Steel DTH Drilling Rig Rod |
||
DZ40 Steel Material Drilling Drill Rod with API Thread for DTH Drilling Rig
Product Introduce
Drill pipes are processed in strict accordance, using internationally advanced thickening technology, heat treatment technology, friction welding technology and advanced production and testing equipment, not only providing users with conventional drills covering all API standard specifications and steel grades At the same time, through independent research and development to provide users with a variety of special and high-end products to meet the differentiated and personalized needs of customers.
Specification
| pipe diameter(mm) | pipe length(mm) | wall thickness(mm) | connection thread | |
| inch | mm | |||
| 3 | 76 | 1000-6000 | 6.3; 8 |
API 2 3/8” REG 2 3/8” IF 2 7/8” IF 3 1/2” IF 3 1/2” BECO 4 1/2” BECO |
| 3 1/2 | 89 | 1000-6000 | 6.3; 8 | |
| 4 | 102 | 1000-6000 | 6.3; 8 | |
| 4 1/2 | 114 | 1500-9140 | 8; 10 | |
| 5 | 127 | 1500-9500 | 10; 12 | |
| 5 1/2 | 140 | 1500-9500 | 14; 19 | |
Feature
1. Precisely friction welded to ensure straightness and concentrically;
2. Special heat treatment process to ensure that the connecting thread has sufficient strength and wear resistance;
3. The body of the drill rod and the joint are welded by a friction welding process, and then the intermediate frequency return is used to remove the welding stress to ensure the welding strength and the straightness of the finished drill rod.
4. Thread part is process nitrogen treatment and upsetted.
We can also supply DTH drill pipe from diameter 76mm to 140mm.

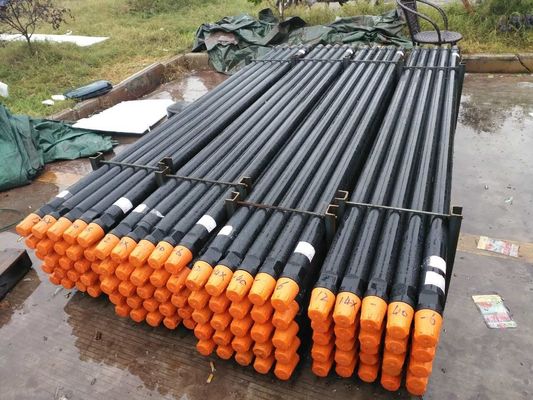

Detailed photo
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
