3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration

Certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
China Changsha Sollroc Engineering Equipments Co., Ltd certification
Customer Reviews
I received my hammers and bits, they looks amazing,.they are performing well after we use them, thanks very much.

—— John Lewis

I would recommend this company product 110% as in the past I have had a 100% good result from them.

—— Vesa Vaatanen

I'm Online Chat Now

3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration

3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration
3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration
3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration

Large Image :  3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 3.5Y RC Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration

Description
Color: Black Or You Wanted Material: Alloy Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Name: 3.5Y Rc Hammer Manufacturing Process: Forging
Port: Shanghai/Guangzhou/ Beijing
High Light:

RC Drill Rock Hammer

,

3.5in RC Drill Rock Hammer

,

Mine Exploration Reverse Circulation Hammer

3.5'' Reverse Circulation RC Drill Rock Hammer for Mine Exploration



Product Introduce:

Basically in a Reverse Circulation Drilling Program, the drill hammer breaks up the rock as the hole is drilled. This produces gravel size rock chips, clay to sand sized sediments. The rock chips are brought to the surface by compressed air.

The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.



Adavantages:

1. Direct drilling cost reductions in the range of 25% to 40%.
2. Faster completion of drill programs with quicker delivery of results.
3. Reduced man-hours at the drill with decreased exposure to potential accidents.
4. Reduced contractor activity in the mine reduces mine support burden.

Specification:
Hammer Bit Shank Hole Range
(mm)
External Diameter
(mm)
Length (less bit)
mm
Weight
(kg)
Connection Thread Working Pressure
RC3.5-Y SRC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC3-E531 SRC531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC4-E004 SRC004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E542 SRC542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E543 SRC543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E545 SRC545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke
1.5-3.5Mpa
RC5-P40 SPR40(SPR040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R SPR52/SPR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke
1.5-3.5Mpa
RC5.5-E547 SRC547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC5.5-P54/P54R SPR54(SRC054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa

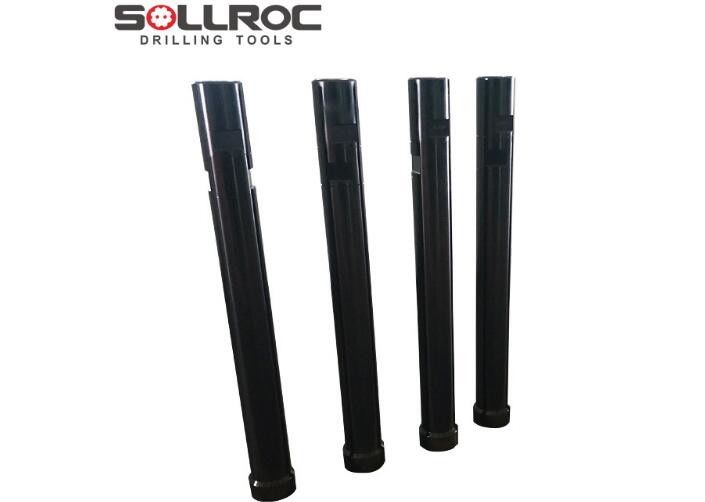

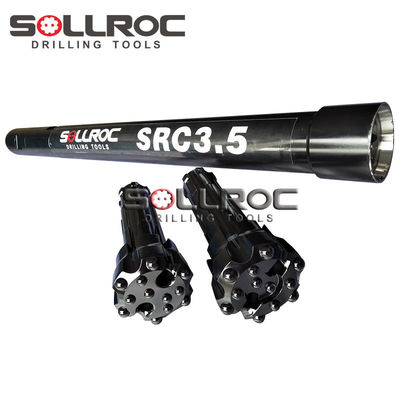

Detailed Photo:

3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 0

3.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 13.5'' Reverse Circulation RC Drill Rock Hammer For Mine Exploration 2



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea
