Product Details:
|
| Color: | Black Or You Wanted | Material: | Alloy Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Name: | PR54 Rc Hammer | Manufacturing Process: | Forging |
| Port: | Shanghai/Guangzhou/ Beijing | ||
| High Light: | PR54R RC Rock Hammer,DTH RC Rock Hammer,PR54 Mining Reverse Circulation Hammer |
||

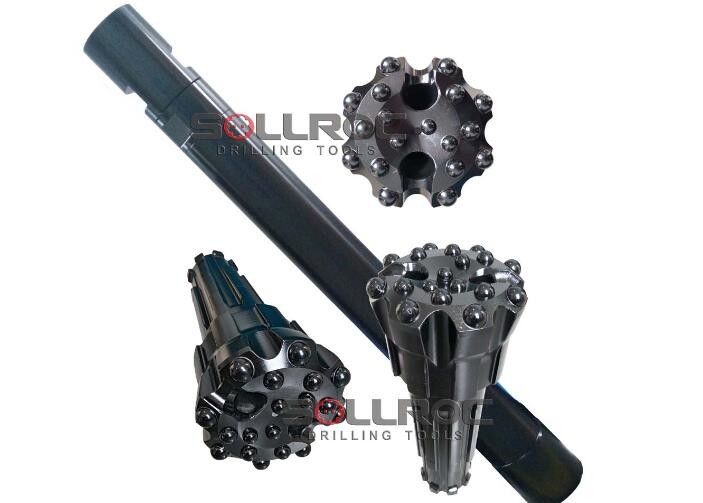

PR54/PR54R Centre Sample Recovery RC Rock Hammer for Mining Exploration
Product Introduce:
RC series reverse circulation DTH hammer is the latest developed product of our company.It's mainly used for deep exploration drilling and core sampling.Due to its high-quality sample results, and speed of operation for shallower holes, reverse circulation drilling is becoming increasingly popular around the globe. In fact, it's the most widely accepted chip sampling method. This is largely due to our innovative designs, and we're continuing to develop the capabilities of this valuable sampling method. Partner with SOLLROC for your reverse circulation down hole hammer drilling.
Adavantages:
1. High penetration rates in all rock conditions
2. Quality samples from areas of lost circulation
3. Large, uncontaminated sample return
4. Increased longevity means lower cost per meter
5. The option of diamond-enhanced carbide bits for deep and abrasive drilling conditions, with no bits sharpening required.
| Length (less bit) | 1294mm | |
| Weight (less bit) | 84.5kg | |
| External diamater | φ130mm | |
| Bit shank | PR54 | |
| Hole range | φ135-φ150 | |
| Connection thread | 4.5" Remet 4.5" Metzke |
|
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3.5-Y | SRC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC3-E531 | SRC531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | SRC004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | SRC542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | SRC543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | SRC545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | SPR40(SPR040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | SPR52/SPR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | SRC547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | SPR54(SRC054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
Detailed Photo:
Delivery Way:
By Air, By express or By Sea
About us:
Our company is specialising in drilling parts for decades. We have exported to more than 30 countries all over the world,such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.
For drilling parts, we have the follwings: like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
