RE542 Model Reverse Circulation Hammer with 109.5mm External Diameter and 1.5Mpa-3.5Mpa Working Pressure for DTH Drilling

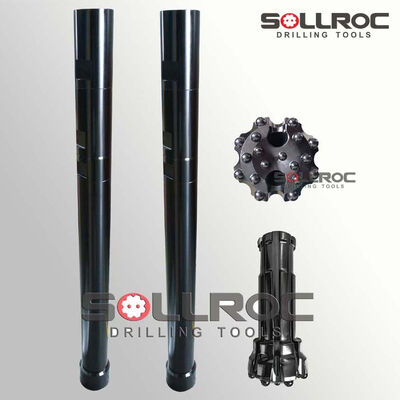

Large Image : RE542 Model Reverse Circulation Hammer with 109.5mm External Diameter and 1.5Mpa-3.5Mpa Working Pressure for DTH Drilling

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	200

Contact Now

RE542 Model Reverse Circulation Hammer with 109.5mm External Diameter and 1.5Mpa-3.5Mpa Working Pressure for DTH Drilling

Description

Model NO.:	RE542	Trademark:	Sollroc
Origin:	Changsha, Hunan	HS Code:	84314320
Production Capacity:	1000PCS Per Month
Highlight:	RE542 Model RC Hammer , 109.5mm External Diameter Reverse Circulation Hammer , 1.5Mpa-3.5Mpa Working Pressure DTH Drilling Tool

About us:

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Futures:

Manufactured using premium hardened metals for long life;

Maximum material recovery, up to 98%;
No cross contamination of samples;

Handles injection of water, foam, oil, and polymers without performance loss;

Delivers maximum drilling under water.

Product specifications:

1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R

RE542 hammer technical date:

Length (less bit)	1191mm
Weight (less bit)	51.0kg
External diamater	φ109.5mm
Bit shank	RE542
Hole range	φ113-φ130
Connection thread	3.5"-4" Remet 4" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	12 m³/min
	2.4 Mpa	18 m³/min
	3.0 Mpa	26 m³/min

RC bits sizes available:

Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter 104mm-127mm; Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter 113mm-146mm; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter 152-190mm; Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter190-250mm; Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter 250-370mm; Shank type: RC100/RC100R.
Other size can be upon to customer's requirements

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Product photos

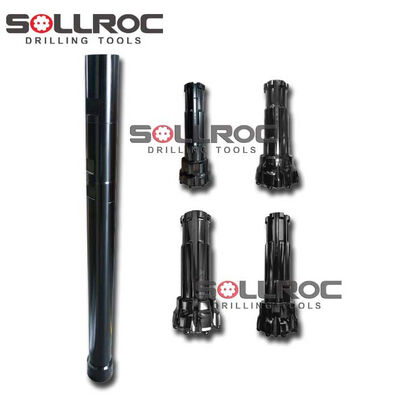

RE542 Model Reverse Circulation Hammer with 109.5mm External Diameter and 1.5Mpa-3.5Mpa Working Pressure for DTH Drilling 0

Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:

15-18 working days after received prepaid payment.

Transportation:
By air, By Express or By sea according to your requests.
