5 Inch RE545 Model Reverse Circulation Hammer for Deep Hole Exploration and Mining

Large Image : 5 Inch RE545 Model Reverse Circulation Hammer for Deep Hole Exploration and Mining

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1800

Contact Now

5 Inch RE545 Model Reverse Circulation Hammer for Deep Hole Exploration and Mining

Description

Model NO.:	RE545	Sizes:	5 Inch
Quality:	Top	MOQ:	1PC
Color:	Black	Transport Package:	Cartons + Ply-Wooden Cases For Exporting
Trademark:	Sollroc	Origin:	Changsha, Hunan
HS Code:	84314320	Production Capacity:	1000PCS Per Month
Highlight:	5 Inch Reverse Circulation Hammer , RE545 Model RC Hammer , Deep Hole Exploration DTH Hammer

Reverse Circulation hammer (RC hammer) is our most advanced product, used in deep hole exploration drilling and mining ore grade control, etc.

Features:
- Reference the design and production experience of conventional DTH hammer and combine the operating characteristics of RC hammer; internal structure design is optimized to ensure ideal energy transfer and high drilling speed as well as steady sampling.
- Simple internal structure and rigid components ensure long using life and easy maintenance of the hammer.
- Sample tube is integrative designed and can be placed without disassembling of the hammer. With carburizing treatment, the sample tube has good wear resistance.
- RC bit has patented design. One hammer could drill different size of holes just by replacing different size bits, and ensure no contamination of the sample as well.
- In difficult conditions such as loose soil, hard rock formation or plenty of water exists, sampling can be done well.

Model SRC545 hammer technical date:

Length (less bit)	1261mm
Weight (less bit)	65.0kg
External diamater	φ117.5mm
Bit shank	RE545
Hole range	φ122-φ135
Connection thread	4"-4.5" Remet 4"-4.5" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m³/min
	3.0 Mpa	28 m³/min

RC bits sizes available:
Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter 104mm-127mm; Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter 113mm-146mm; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456

Other size can be upon to customer's requirements
We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

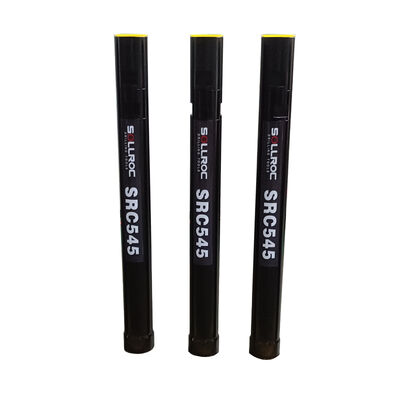

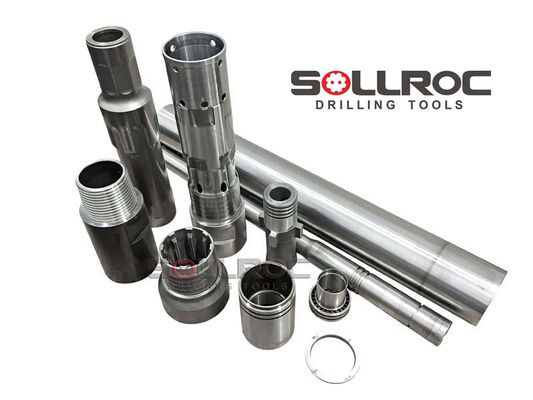

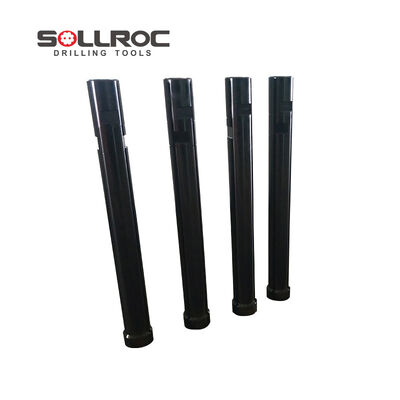

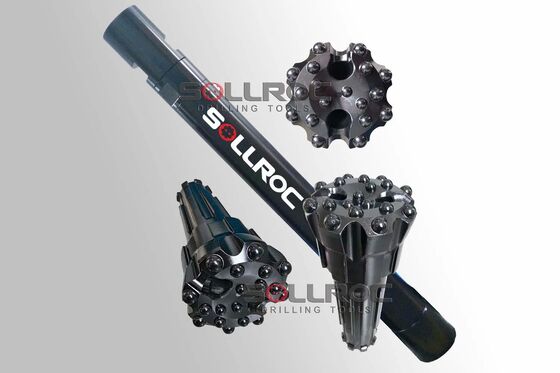

Product photos

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.
