PR40 Reverse Circulation Hammer with 124-142mm Hole Range 1.5-3.5Mpa Working Pressure and Hardened Metals Construction

Large Image : PR40 Reverse Circulation Hammer with 124-142mm Hole Range 1.5-3.5Mpa Working Pressure and Hardened Metals Construction

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	200

Contact Now

PR40 Reverse Circulation Hammer with 124-142mm Hole Range 1.5-3.5Mpa Working Pressure and Hardened Metals Construction

Description

Model NO.:	PR40	Transport Package:	Cartons + Ply-Wooden Cases For Exporting
Trademark:	Sollroc	Origin:	Changsha, Hunan
HS Code:	84314320	Production Capacity:	1000PCS Per Month
Highlight:	124-142mm Hole Range RC Hammer , 1.5-3.5Mpa Working Pressure Reverse Circulation Hammer , Hardened Metals Construction PR40 Hammer

About us:

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Futures:

Manufactured using premium hardened metals for long life;

Maximum material recovery, up to 98%;
No cross contamination of samples;

Handles injection of water, foam, oil, and polymers without performance loss;

Delivers maximum drilling under water.

Product specifications:

1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R

PR40 hammer technical date:

Length (less bit)	1362mm
Weight (less bit)	80.5kg
External diamater	φ120.5mm
Bit shank	PR40
Hole range	φ124-φ142
Connection thread	3.5"-4.5" Remet 3.5"-4.5" Metzke
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	16 m³/min
	2.4 Mpa	22 m³/min
	3.0 Mpa	28 m³/min

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	RE531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	RC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	RE004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	RE542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	RE543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	RE545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	PR40(RE040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	PR52/PR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-E547	RE547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	PR54(RE054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

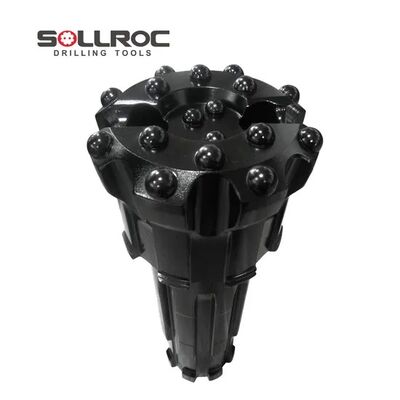

RC bits sizes available:

Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter 104mm-127mm; Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter 113mm-146mm; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter 152-190mm; Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter190-250mm; Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter 250-370mm; Shank type: RC100/RC100R.
Other size can be upon to customer's requirements

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

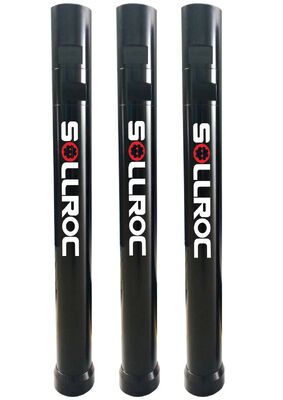

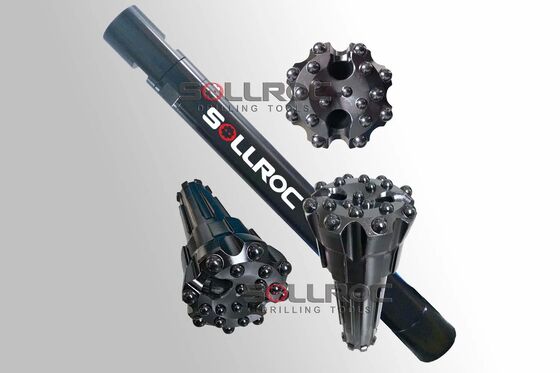

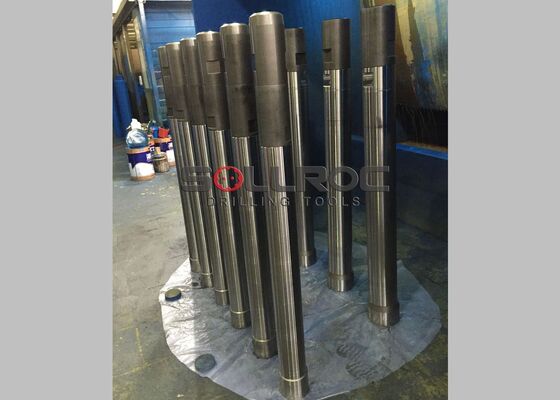

Product photos

PR40 Reverse Circulation Hammer with 124-142mm Hole Range 1.5-3.5Mpa Working Pressure and Hardened Metals Construction 0

Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:

Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.
