Reverse Circulation Hammer RC6A/RC6AR with Maximum Material Recovery No Cross Contamination and Handles Injection of Water Foam Oil and Polymers

Large Image : Reverse Circulation Hammer RC6A/RC6AR with Maximum Material Recovery No Cross Contamination and Handles Injection of Water Foam Oil and Polymers

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	200

Contact Now

Reverse Circulation Hammer RC6A/RC6AR with Maximum Material Recovery No Cross Contamination and Handles Injection of Water Foam Oil and Polymers

Description

Model NO.:	RC6A/RC6AR	Trademark:	Sollroc
Origin:	Changsha, Hunan	HS Code:	84314320
Production Capacity:	1000PCS Per Month
Highlight:	Maximum Material Recovery Reverse Circulation Hammer , No Cross Contamination RC Hammer , Handles Injection of Water Foam Oil and Polymers RC6A/RC6AR Hammer

About us:

We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Futures:

Manufactured using premium hardened metals for long life;

Maximum material recovery, up to 98%;
No cross contamination of samples;

Handles injection of water, foam, oil, and polymers without performance loss;

Delivers maximum drilling under water.

Product specifications:

1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R

RC6A/RC6AR hammer technical date:

Length (less bit)	1320mm
Weight (less bit)	110.0kg
External diamater	φ146mm
Bit shank	RC6A/RC6AR
Hole range	φ152-φ190
Connection thread	Upon to customers' request
Working pressure	1.5Mpa-3.5Mpa
Air consumption	1.7 Mpa	20 m³/min
	2.4 Mpa	26 m³/min
	3.0 Mpa	35 m³/min

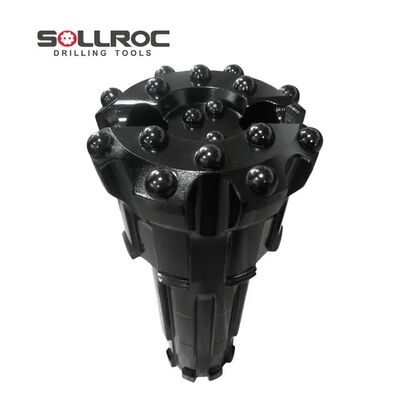

RC bits sizes available:

Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter 104mm-127mm; Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter 113mm-146mm; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter 152-190mm; Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter190-250mm; Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter 250-370mm; Shank type: RC100/RC100R.
Other size can be upon to customer's requirements

We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

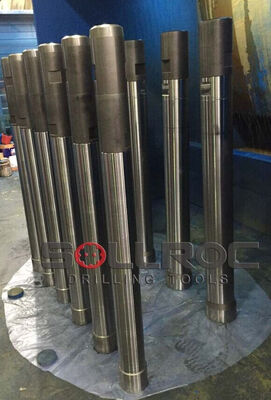

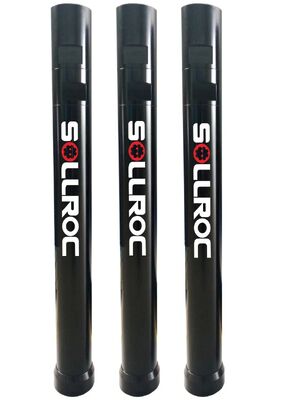

Product photos

Reverse Circulation Hammer RC6A/RC6AR with Maximum Material Recovery No Cross Contamination and Handles Injection of Water Foam Oil and Polymers 0

Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:

Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.
