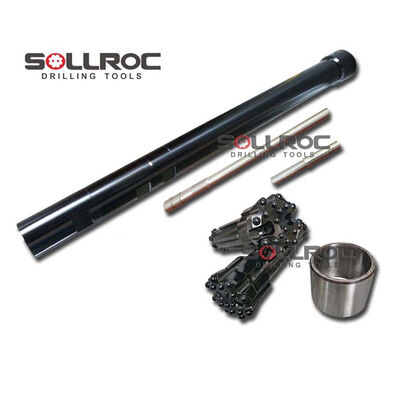

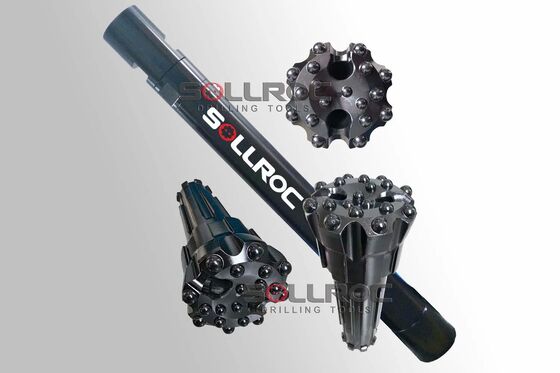

Grade AAA RC Hammer with Quality Alloy Steel + Carbide for Deep Hole Exploration Drilling

Large Image : Grade AAA RC Hammer with Quality Alloy Steel + Carbide for Deep Hole Exploration Drilling

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2500

Contact Now

Grade AAA RC Hammer with Quality Alloy Steel + Carbide for Deep Hole Exploration Drilling

Description

Model NO.:	RE531, RE004, RE542, RE543, RE545, PR40, PR54	Color:	Black Or Customerized
Material:	Quality Alloy Steel + Carbide	Advantage:	Durable And High Performance
Package:	Cartons Or Plywood Case For Seaworthy Or Airworthy	Applications:	Deep Hole Exploration Drilling And Mining Ore Grad
Top Sub Thread:	Remet And Metzke Connection	Name:	Reverse Circulation Hammer
Usage:	Ore Mining, Geothermal Drilling	Transport Package:	Cartons + Ply-Wooden Cases For Exporting
Specification:	Grade AAA	Trademark:	SOLLROC
Origin:	Changsha, Hunan	HS Code:	84314320
Production Capacity:	3000PCS Per Month
Highlight:	Grade AAA RC Hammer , Quality Alloy Steel + Carbide RC Hammer , Deep Hole Exploration Drilling RC Hammer

RC Reverse Circulation Hammers RC Hammers For Grade Control

Features of SOLLROC RC hammers:
Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.

The specifications of RC hammers we can produce:
1)  3" RC hammers: RE531 connection thread 3" Remet
2)  3.5" RC hammers: RC3.5-Y connection thread 3" Remet
3)  4'' RC hammers: RE004 connection thread 3.5"/4" Remet; 4" Metzke
4)  4.5" RC hammers: RE542/RE543 connection thread 3.5"/4" Remet; 4" Metzke
5)  5'' RC hammers:RE545/PR40 connection thread 3.5"/4.5" Remet; 3.5"/4.5" Metzke
6)  5.5'' RC hammers:PR52/RE547/PR54 connection thread 4.5" Remet; 4.5" Metzke
7)  6'' RC hammers: RC62/RC62R

Hammer	Bit Shank	Hole Range (mm)	External Diameter (mm)	Length (less bit) mm	Weight (kg)	Connection Thread	Working Pressure
RC3-E531	RE531	84-100	81	1069	29	3" Remet	1.5-3.5Mpa
RC3.5-Y	RC3.5Y	98-115	94	1184	44	3" Remet	1.5-3.5Mpa
RC4-E004	RE004	111-127	107	1252	52	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E542	RE542	113-130	109.5	1191	57	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E543	RE543	120-135	116	1191	63	3.5" / 4" Remet 4" Metzke	1.5-3.5Mpa
RC4.5-E545	RE545	122-135	117.5	1261	65	4" / 4.5" Remet 4" / 4.5" Metzke	1.5-3.5Mpa
RC5-P40	PR40(RE040)	124-142	120.5	1362	80.5	3.5" / 4.5"Remet 3.5" / 4.5"Metzke	1.5-3.5Mpa
RC5.5-P52/P52R	PR52/PR52R	126-142	121	1227	68.5	4" / 4.5"Remet 4" / 4.5"Metzke	1.5-3.5Mpa

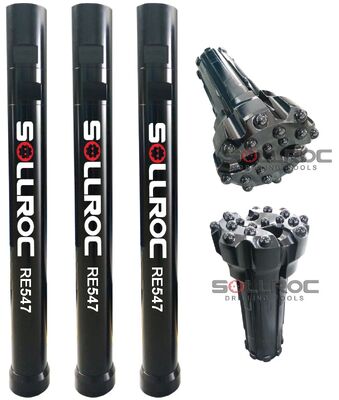

RC5.5-E547	RE547	130-146	124.5	1270	74	4.5" Remet 4.5" Metzke	1.5-3.5Mpa
RC5.5-P54/P54R	PR54(RE054)	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC5.5-M5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa

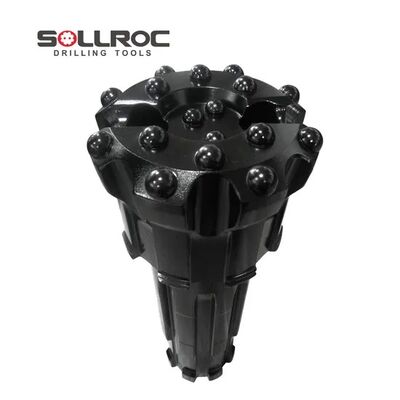

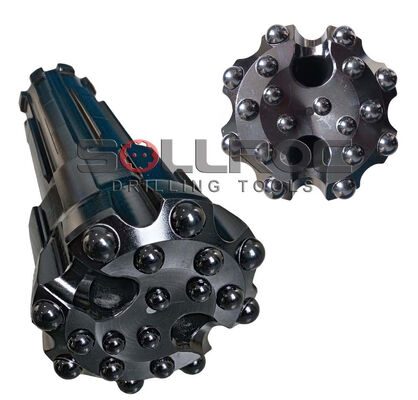

Product specifications: RC Bits

External diameter	Bit shank	Hole range	Connection thread
107mm	RE004	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
120.5mm	PR40	Ø124mm- Ø142mm	3.5"-4" Remet 3.5"-4" Metzke
100mm	RE004/RE004R	Ø104mm- Ø120mm	3.5"-4" Remet 4" Metzke
107mm	42T	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
99mm	HRC45	Ø114mm- Ø127mm	Upon the thread of the drill tube
121mm	PR52	Ø126mm- Ø142mm	4"-4.5" Remet 4"-4.5" Metzke
126mm	PR52	Ø133mm- Ø146mm	Upon the thread of the drill tube
124mm	PR52/PR52R	Ø130mm- Ø146mm	4"-4.5" Remet 4"-4.5" Metzke
130mm	PR54	Ø135mm- Ø150mm	4.5" Remet 4.5" Metzke
126mm	HRC55	Ø133mm- Ø152mm	Upon the thread of the drill tube
146mm	RC62/RC62R	Ø152mm- Ø190mm	Upon the thread of the drill tube
146mm	HRC62	Ø155mm- Ø190mm	Upon the thread of the drill tube
109.5mm	RE542	Ø113mm- Ø130mm	3.5"-4" Remet 4" Metzke
116mm	RE542	Ø120mm- Ø135mm	3.5"-4" Remet 4" Metzke
117.5mm	RE545	Ø122mm- Ø135mm	4"-4.5" Remet 4"-4.5" Metzke
124.5mm	RE547	Ø130mm- Ø146mm	4.5" Remet 4.5" Metzke
132mm	MX5456	Ø136mm- Ø150mm	4.5" Remet 4.5" Metzke

About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

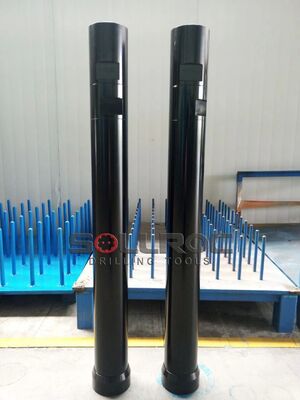

Production photos:

Grade AAA RC Hammer with Quality Alloy Steel + Carbide for Deep Hole Exploration Drilling 0
