High-Quality RC Hammer and RC Drilling Hammer in 3 Inch to 6 Inch Sizes with Grade A Material and Maximum Material Recovery

Large Image : High-Quality RC Hammer and RC Drilling Hammer in 3 Inch to 6 Inch Sizes with Grade A Material and Maximum Material Recovery

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	1800

Contact Now

High-Quality RC Hammer and RC Drilling Hammer in 3 Inch to 6 Inch Sizes with Grade A Material and Maximum Material Recovery

Description

Model NO.:	RE545, RE547, PR52, RE54, RE004, RE543	Sizes:	3 Inch To 6 Inch
Model:	Re531, Re004, Re542, Re543, Re545, Pr40, Pr52	Color:	As Request
Quantity:	Small Quantity Is Acceptable	Keywords1:	RC Hammer
Keywords2:	RC Drilling	Transport Package:	Cartons + Ply-Wooden Cases For Exporting
Specification:	Grade A	Trademark:	Sollroc
Origin:	Changsha, Hunan	HS Code:	84314320
Production Capacity:	1000PCS Per Month
Highlight:	3 Inch to 6 Inch RC Hammer , Grade A RC Drilling Hammer , Maximum Material Recovery Reverse Circulation Hammer

RC Drilling Hammers & RC Drilling Bits

About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as France, Spain, Italy, South Africa, Iran, Malaysia, Australia ad etc.

Features:
Manufactured using premium hardened metals for long life;
Maximum material recovery, up to 98%;
No cross contamination of samples;
Handles injection of water, foam, oil, and polymers without performance loss;
Delivers maximum drilling under water.

Product specifications:
1) 3" RC hammers: RE531
2) 4'' RC hammers: RE004/RE004R; RE542
3) 5'' RC hammers:RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC hammers: RC62/RC62R
5) 8'' RC hammers: RC82/RC82R
6) 10'' RC hammers: RC100/RC100R

Hammer	Bit Shank	Hole Range(mm)	External Diameter(mm)	Length (without bit)mm	Weight	Connection Thread	Working Pressure
RE531	RE531	84-100	81	1069	29	3" Remet	1.0-3.0Mpa
RE004	RE004	111-127	107	1252	52	3.5"-4" Remet 4" Metzke	1.0-3.0Mpa
RE542	RE542	113-130	109.5	1191	57	3.5"-4" Remet 4" Metzke	1.0-3.0Mpa
RE543	RE543	120-135	116	1191	62	3.5"-4" Remet 4" Metzke	1.0-3.0Mpa
RE545	RE545	122-135	117.5	1261	65	4"-4.5"Remet 4"-4.5"Metzke	1.5-3.5Mpa
RE547	RE547	130-146	124.5	1270	71	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
PR40	PR40	124-142	120.5	1362	80.5	3.5"-4.5"Remet 3.5"-4.5"Metzke	1.5-3.5Mpa
PR52	PR52	126-142	121	1227	68.5	4"-4.5"Remet 4"-4.5"Metzke	1.5-3.5Mpa
PR52R	PR52/PR52R	130-146	124	1225	65	4"-4.5"Remet 4"-4.5"Metzke	1.5-3.5Mpa
PR54	PR54	135-150	130	1294	84.5	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
MX5456	MX5456	136-150	132	1362	90	4.5"Remet 4.5"Metzke	1.5-3.5Mpa
RC62/RC62R	RC62/RC62R	152-190	146	1320	110	As Request	1.5-3.5Mpa
RC82/RC82R	RC82/RC82R	190-250	180	1395	185	As Request	1.5-3.5Mpa
RC100/RC100R	RC100/RC100R	250-370	240	1528	328	As Request	1.5-3.5Mpa

Product specifications: RC Bits

External diameter	Bit shank	Hole range	Connection thread
107mm	RE004	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
120.5mm	PR40	Ø124mm- Ø142mm	3.5"-4" Remet 3.5"-4" Metzke
100mm	RE004/RE004R	Ø104mm- Ø120mm	3.5"-4" Remet 4" Metzke
107mm	42T	Ø111mm- Ø127mm	3.5"-4" Remet 4" Metzke
99mm	HRC45	Ø114mm- Ø127mm	Upon the thread of the drill tube
121mm	PR52	Ø126mm- Ø142mm	4"-4.5" Remet 4"-4.5" Metzke
126mm	PR52	Ø133mm- Ø146mm	Upon the thread of the drill tube
124mm	PR52/PR52R	Ø130mm- Ø146mm	4"-4.5" Remet 4"-4.5" Metzke
130mm	PR54	Ø135mm- Ø150mm	4.5" Remet 4.5" Metzke
126mm	HRC55	Ø133mm- Ø152mm	Upon the thread of the drill tube
146mm	RC62/RC62R	Ø152mm- Ø190mm	Upon the thread of the drill tube
146mm	HRC62	Ø155mm- Ø190mm	Upon the thread of the drill tube
180mm	RC82/RC82R	Ø155mm- Ø190mm	Upon the thread of the drill tube
240mm	RC100/RC100R	Ø250mm- Ø370mm	Upon the thread of the drill tube
109.5mm	RE542	Ø113mm- Ø130mm	3.5"-4" Remet 4" Metzke
116mm	RE542	Ø120mm- Ø135mm	3.5"-4" Remet 4" Metzke
117.5mm	RE545	Ø122mm- Ø135mm	4"-4.5" Remet 4"-4.5" Metzke
124.5mm	RE547	Ø130mm- Ø146mm	4.5" Remet 4.5" Metzke
132mm	MX5456	Ø136mm- Ø150mm	4.5" Remet 4.5" Metzke

RC bits sizes available:
Specification:
1) 3" RC bits diameter 84mm-100mm shank RE531
2) 4'' RC Bits:Diameter (104mm-127mm); Shank type: RE004/RE004R;
RE542
3) 5'' RC Bits:Diameter(113mm-146mm) ; Shank type: RE543,RE545,RE547;PR40,PR52,PR54; MX5456
4) 6'' RC Bits: Diameter(152-190mm); Shank type: RC62/RC62R;
5) 8'' RC Bits: Diameter(190-250mm); Shank type: RC82/RC82R;
6) 10'' RC Bits: Diameter(250-370mm); Shank type: RC100/RC100R.
Other size can be upon to customer's requirements
We can also provide related products DTH hammers and bits, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

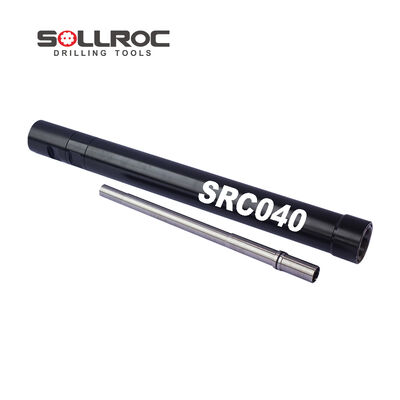

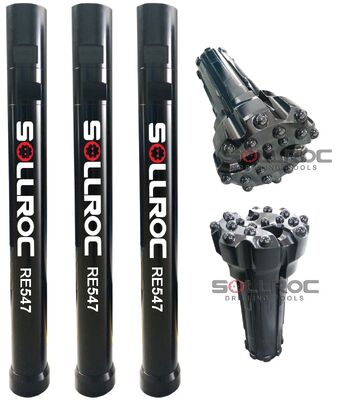

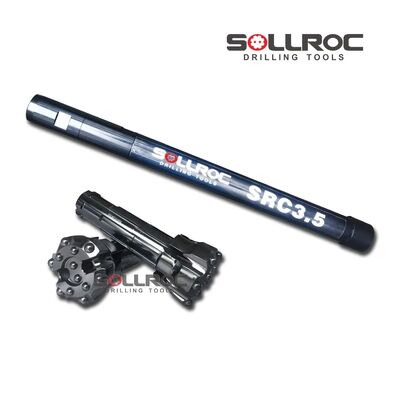

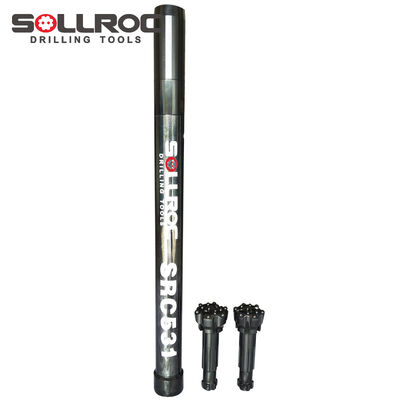

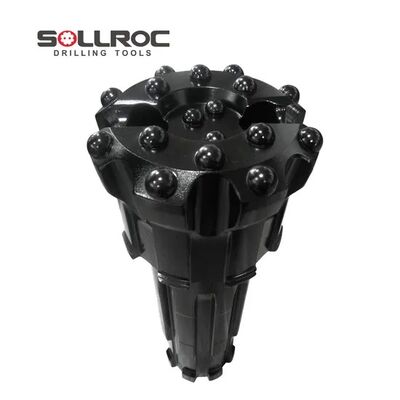

Product photos
