Ql Series High Pressure DTH Hammers

Large Image : Ql Series High Pressure DTH Hammers

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	600

Contact Now

Ql Series High Pressure DTH Hammers

Description

Model NO.:	QL30, QL40, QL50, QL60, QL80	Sizes:	3 Inch To 8 Inch
Color:	As Per Requirement	Quantity:	Small Quantity Is Acceptable
Model:	Ql30, Ql40, Ql50, Ql60, Ql80	Advantage:	High Performance
Product Name:	Ql Series High Pressure DTH Hammers	Transport Package:	Cartons + Ply-Wooden Cases For Exporting
Specification:	Grade A	Trademark:	Sollroc
Origin:	Changsha, Hunan	HS Code:	84314320
Production Capacity:	1000PCS Per Month

About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.

QL shank products specifications:
Model: QL30, QL40, QL50, QL60, QL80

	QL40	QL50	QL60	QL80
Length(less bit)	1097mm	1156mm	1212mm	1463mm
Weight (less bit)	41.0kg	73.0kg	95.0kg	192.0kg
External diameter	99mm	125mm	146mm	180mm
Bits shank	QL40	QL50	QL60	QL80
Bits diameter	105-135mm 4 1/8" - 5 1/8"	130-156mm 5 1/8" - 6 1/8"	152-203mm 6" - 8"	200-279mm 7 7/8" - 11"
Connection thread	API 2 3/8" Reg	API 3 1/2" Reg	API 3 1/2" Reg	API 4 1/2" Reg
Air pressure	1.0-2.5 Map	1.0-2.5Mpa	1.0-2.5Mpa	1.0-2.5Mpa

Other shank can be available:
3.5" hammer, shank: DHD3.5 / Bulroc BR3 / COP32 / QL30 / M30 /Mach303
4" hammer, IR DHD340A / SD4 / COP44 / QL40 / Bulroc BR4 / M40 / Mach44 shank
5" hammer, IR DHD350R / SD5 / COP54 / Bulroc BR5 / QL50 / M50 /Mach50 shank
6" hammer, IR DHD360 / SD6 / COP64 / Bulroc BR6 / QL60 / M60 shank
8" hammer, IR DHD380 / SD8 / COP84 /QL80 shank
10" hammer, SD10 / Numa100 shank
12" hammer, IR DHD1120 / SD12 / Numa120 / Numa125 shank
15" hammer, SD15 shank
We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

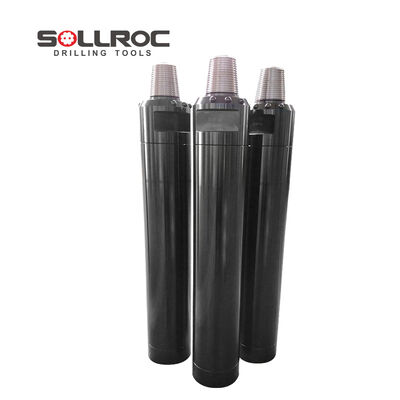

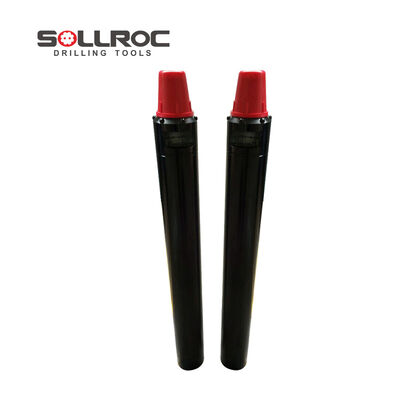

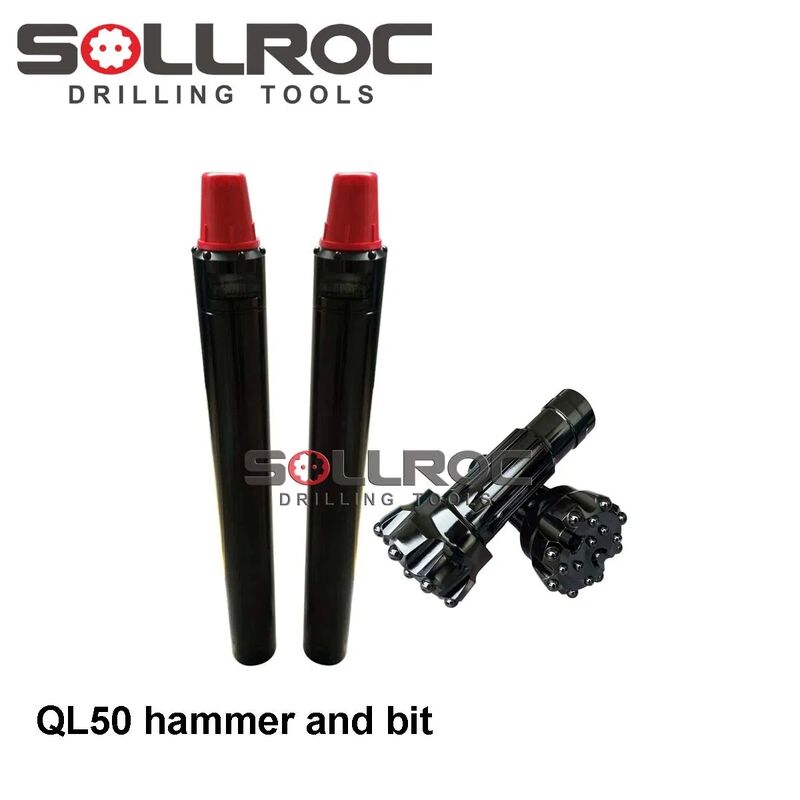

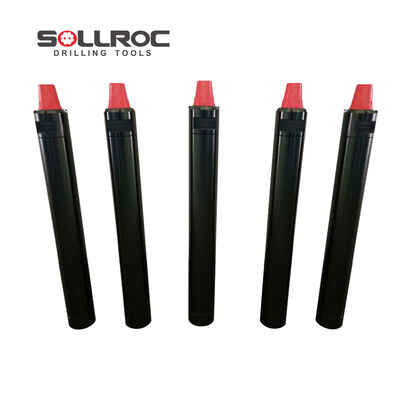

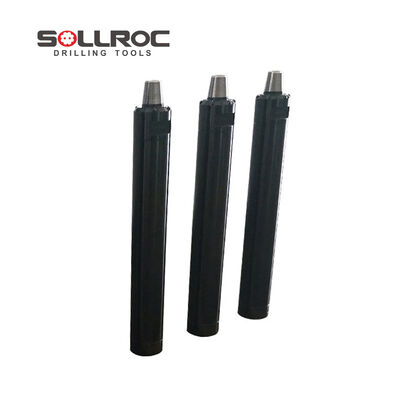

Product photos

Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:
Generally, Production time is 15 -25 days.

Transportation:
By air, By Express or By sea according to your requests.
