DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling

DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling
DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling

Large Image :  DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 900

DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling

Description
Model NO.: DHD350 DTH Hammers Sizes: 3 Inch To 8 Inch
Bit Diameter: 135mm-155mm Length: 1214
Product Name: DHD350 DTH Hammer Outer Diameter: 125mm
Weight: 76.5kg Working Pressure: 10-25 Bar
Transport Package: Cartons + Ply-Wooden Cases For Exporting Specification: DHD350 DTH Hammer
Trademark: Sollroc Origin: Changsha, Hunan
HS Code: 84314320 Production Capacity: 1000PCS Per Month

About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.

5" DTH hammer specifications:
Model: DHD350R, COP54, SD5, M50, QL50


DHD350
COP54
SD5 M50 QL50
Length(less bit) 1214mm 1175mm 1110mm 1156mm
Weight (less bit) 76.5kg 72.5kg 68.5kg 73.00kg
External diameter 125mm 125mm 125mm 125mm
Bits shank DHD350R
COP54
SD5 Misson50 QL50
Bits diameter 130-156mm
5 1/8" - 6 1/8"

130-156mm
5 1/8" - 6 1/8"

130-156mm
5 1/8" - 6 1/8"
130-156mm
5 1/8" - 6 1/8"
Connection thread API 2 3/8" Reg
API 3 1/2" Reg
API 2 3/8" Reg
API 3 1/2" Reg
API 2 3/8" Reg
API 3 1/2" Reg
API 2 3/8" Reg
API 3 1/2" Reg
Air pressure 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa

Other shank can be available:
3.5" hammer, shank: DHD3.5 / Bulroc BR3 / COP32 / QL30 / M30 /Mach303
4" hammer, IR DHD340A / SD4 / COP44 / QL40 / Bulroc BR4 / M40 / Mach44 shank
5" hammer, IR DHD350R / SD5 / COP54 / Bulroc BR5 / QL50 / M50 /Mach50 shank
6" hammer, IR DHD360 / SD6 / COP64 / Bulroc BR6 / QL60 / M60 shank
8" hammer, IR DHD380 / SD8 / COP84 /QL80 shank
10" hammer, SD10 / Numa100 shank
12" hammer, IR DHD1120 / SD12 / Numa120 / Numa125 shank
15" hammer, SD15 shank
We can also provide related products DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Product photos:

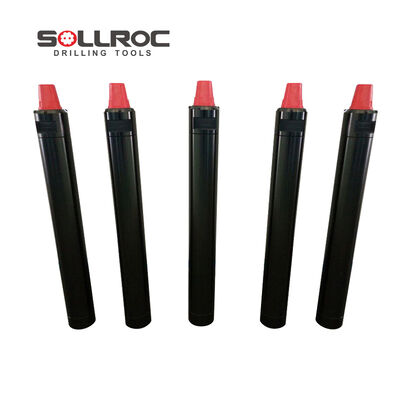

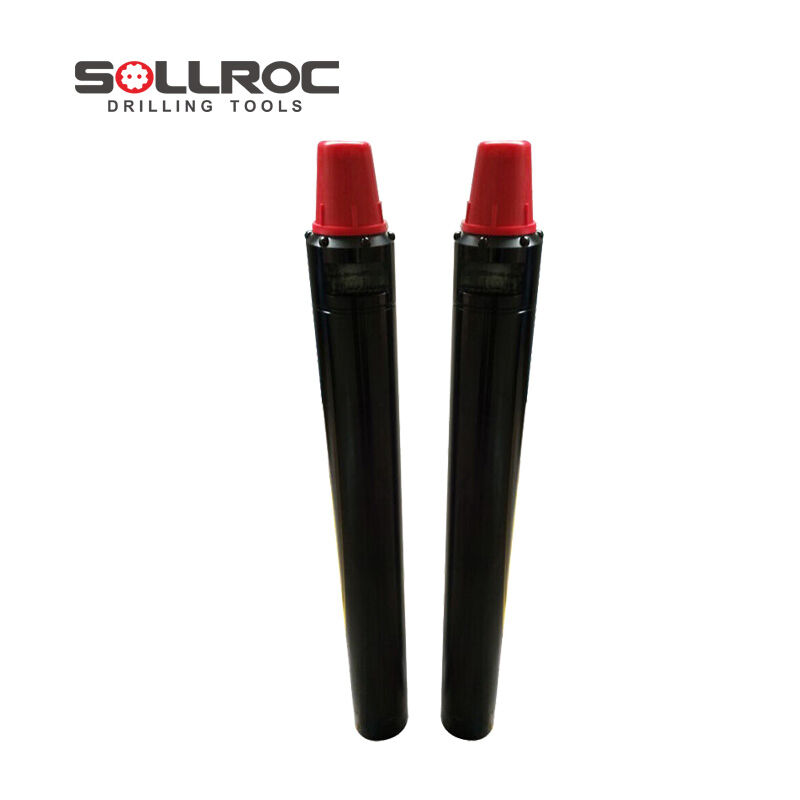

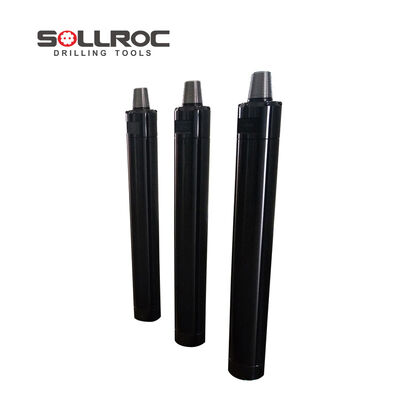

DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling 0
DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling 1

DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling 2
DHD350 Dow The Hole DTH Hammer for Water Well/Blasting Drilling 3


Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.

Production time:
Generally, Production time is 15 -25 days.

Transportation:
By air, By Express or By sea according to your requests.
