Product Details:
|
Product Name: | 124mm 127mm 133mm.136mm RE545 RC Bits | Color: | Black, Blue, Gold |
---|---|---|---|
Face Shape: | Drop Center, Concave | Keywrod 1: | Atlas Copco RC Hammer |
Keyword 2: | RC Bits | Bit Diameter: | 4 1/2", 5", 5 1/4", 5 3/8" |
Highlight: | reverse circulation hammers,reverse circulation drilling |

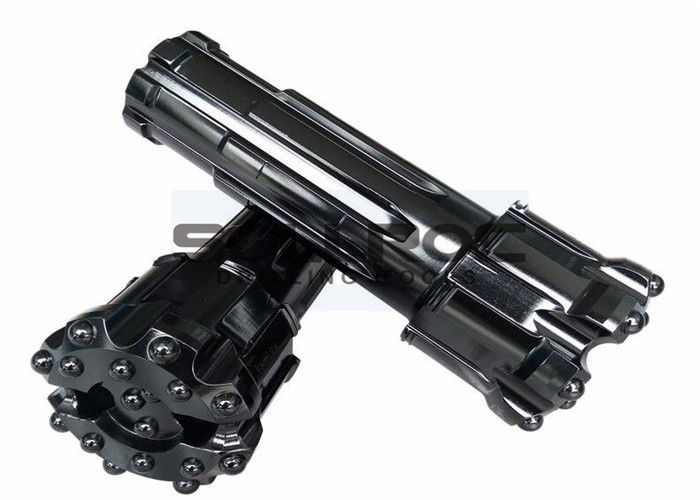

Rock Bits Atlas Copco RC Drill Parts , RC Bits High Strength
RC bits Model RC5-E545 for shank RE545
Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm | Weight (kg) |
Part No. | ||
mm | inch | Gauge Button | Front Button | |||||
124 | 4 7/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 122 | 11.0 | RC5-E545-124 |
127 | 5 | 8 x 14mm | 8 x 14mm | 35 | 2 | 125 | 11.2 | RC5-E545-127 |
133 | 5 1/4 | 8 x 16mm | 9 x 14mm | 35 | 2 | 131 | 11.7 | RC5-E545-133 |
136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 12.0 | RC5-E545-136 |
RC bits Model RC5.5-E547 for shank RE547
Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm | Weight (kg) |
Part No | ||
mm | inch | Gauge Button | Front Button | |||||
136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 14.2 | RC5.5-E547-136 |
140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 14.5 | RC5.5-E547-140 |
143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 14.7 | RC5.5-E547-143 |
146 | 5 3/4 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 144 | 15.0 | RC5.5-E547-146 |
RC Bits
Sollroc RC Hammers Specifications | |||||||||
Hammer Size | Hammer | Bit Shank | Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
3" | RE531 | RE531 | RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
3" | RE035 | RE035 | RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
4 1/2" | RE004 | RE004 | RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
4 1/2" | RE540 | RE540 | RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE040 | RE040 | RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE542 | RE542 | RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE543 | RE543 | RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
5" | RE545 | RE545 | RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | RE547 | RE547 | RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | RE052 | RE052 | RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 3/4" | RE054 | RE054 | RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5 3/4" | RE140 | RE140 | RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
5" | PR40 | PR40 | RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR52 | PR52 | RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR52R | PR52/PR52R | RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
5 1/2" | PR54 | PR54 | RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
6" | MX5456 | MX5456 | RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
Reverse Circulation RC drilling hammers and hammer drill bits provide outstanding performance along with outstanding reliability and simplicity. Our reverse circulation hammers are suitable for any exploration and grade control process to obtain an accurate sample with no contamination. RC drilling hammers can in most instances carry out continuous sample collection in a fraction of the time necessary with conventional or wireline coring.
Quality warranty:
SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using plywood cases and pallet for seaworthy to protect products and avoid the damagement during transportation by sea. Using cartons and plywood cases for air worthy to less the weight and save the freigth. Also we can customize package according to your special requests. Special mark is available.
Production time:
3-4 weeks after received payment in advance.
Transportation:
By air, by Express or by sea according to your requests.
Sollroc is recognized as one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools with more 10 years of experience. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
