Product Details:
|
Product Name: | 127mm 133mm 140mm RE040 RC Bits | Color: | Black, Blue, Gold As Your Request |
---|---|---|---|
Face Shape: | Drop Center, Concave | Keywrod 1: | RE040 RC Hammer |
Keyword 2: | PR40 RC Bits | Bit Diameter: | 4 7/8" 5", 5 1/4", 5 1/2" |
Highlight: | reverse circulation hammers,reverse circulation drilling |

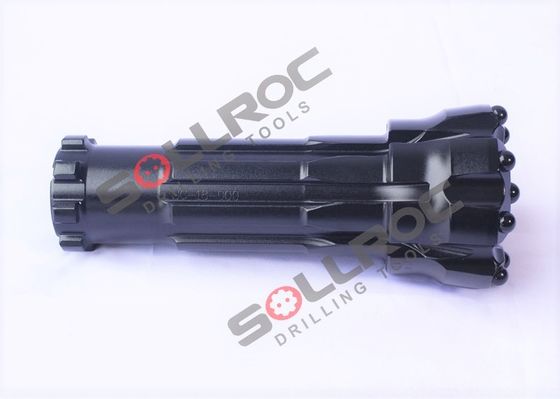

SRC040 4" Reverse Circulation Can fit shank RE040 RC button Bits For RC Drilling
RC bits Model SRC040 for shank RE040
Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm |
Weight (kg) |
Part No | ||
mm | inch | Gauge Button | Front Button | |||||
124 | 4 7/8 | 8 x 14mm | 8 x 13mm | 35 | 2 | 122 | 14.5 | SRC040-124 |
127 | 5 | 8 x 14mm | 8 x 14mm | 35 | 2 | 125 | 14.7 | SRC040-127 |
130 | 5 1/8 | 8 x 16mm | 8 x 14mm | 35 | 2 | 128 | 14.9 | SRC040-130 |
133 | 5 1/4 | 8 x 16mm | 6x14+3x14 | 35 | 2 | 131 | 15.0 | SRC040-133 |
138 | 5 7/16 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 136 | 15.8 | SRC040-138 |
140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 16.0 | SRC040-140 |
RC bits Model SRC052/052R for shank RE052/RE052R
Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm |
Weight (kg) |
Part No. | ||
mm | inch | Gauge Button | Front Button | |||||
133 | 5 1/4 | 8 x 16mm | 6x14+3x14 | 35 | 2 | 131 | 16.9 | SRC052-133 |
136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 17.1 | SRC052--136 |
140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 17.2 | SRC052--140 |
143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 17.3 | SRC052--143 |
RC bits Model SRC054/054R for shank RE054/RE054R
Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm | Weight (kg) |
Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 19.0 | SRC054-136 |
140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 19.3 | SRC054-140 |
143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 19.5 | SRC054-143 |
146 | 5 3/4 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 144 | 19.6 | SRC054-146 |
RC hammer
Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (without bit) mm |
Weight | Connection Thread | Working Pressure |
SRC531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
SRC3.5 | RC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
SRC004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
SRC542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
SRC543 | RE543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
SRC545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
SRC040 | PR40 | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
SRC052/P02R | PR52/PR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
SRC547 | RE547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
SRC054/P04R | PR54 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
SRCM5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
Quality warranty:
SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using plywood cases and pallet for seaworthy to protect products and avoid the damagement during transportation by sea. Using cartons and plywood cases for air worthy to less the weight and save the freigth. Also we can customize package according to your special requests. Special mark is available.
Production time:
3-4 weeks after received payment in advance.
Transportation:
By air, by Express or by sea according to your requests.
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
