Product Details:
|
| Product Name: | 136mm 140mm 143mm 146mm RE054 RC Bits | Color: | Black, Blue, Gold As Your Request |
|---|---|---|---|
| Face Shape: | Drop Center, Concave | Keywrod 1: | RE0542 RC Hammer |
| Keyword 2: | PR54 RC Bits | Diameter: | 5 1/4" 5 1/2" 5 5/8" 5 3/4" |
| Highlight: | reverse circulation drill bits,reverse circulation hammers |
||
146mm Reverse Circulation RE054 RC Drill Bits For RC Drilling
RC bits Model RC5.5-RE054/RE054R for shank RE054/RE054R
| Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm | Weight (kg) |
Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 19.0 | RC5.5-P54-136 |
| 140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 19.3 | RC5.5-P54-140 |
| 143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 19.5 | RC5.5-P54-143 |
| 146 | 5 3/4 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 144 | 19.6 | RC5.5-P54-146 |
RC Bits
| Sollroc RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |

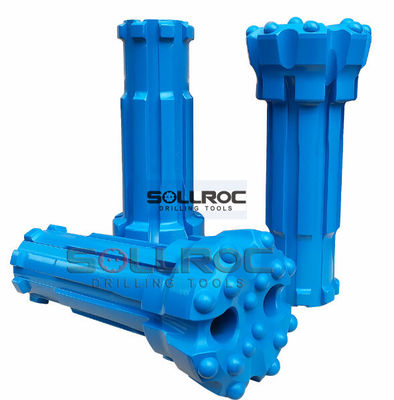

Product Photo
Quality warranty:
SOLLROC products are made of high quality steel and all spares are inspected strictly at every production steps before shipping. We have quickly responses for your complaint and suggestion.
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
